Adaptors 700 Series

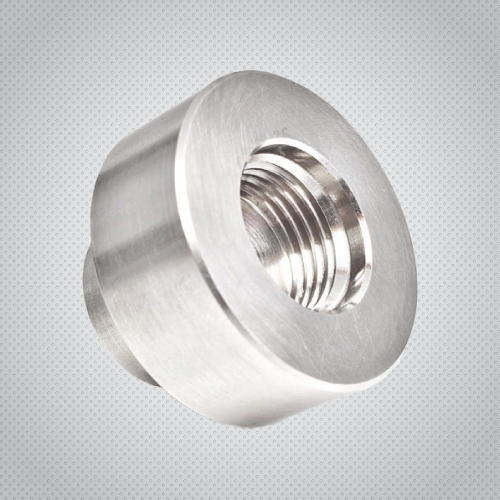

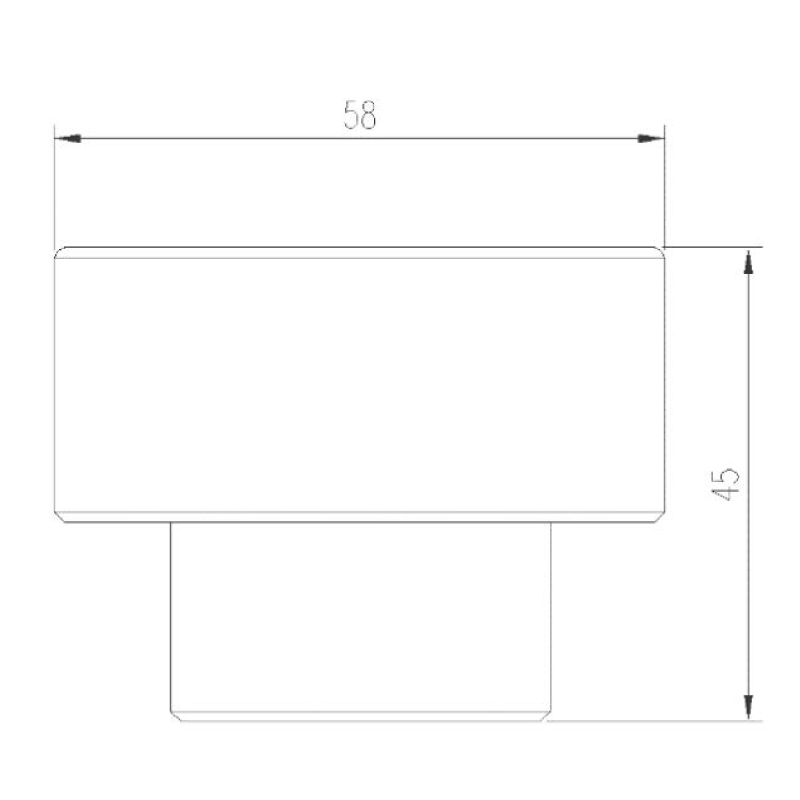

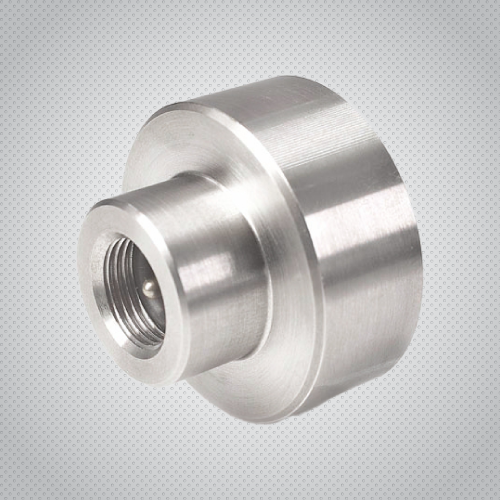

Model 701 Adaptor Aerosol - C10 F - SS

Materials of Construction

Part	Material
Body	Stainless Steel
Seal	Buna-N
Inlet Connection	Aerosol
Outlet Connection	C10 Female
WP	20 Bar

Warranty:All adaptors are warranted for 12 months.

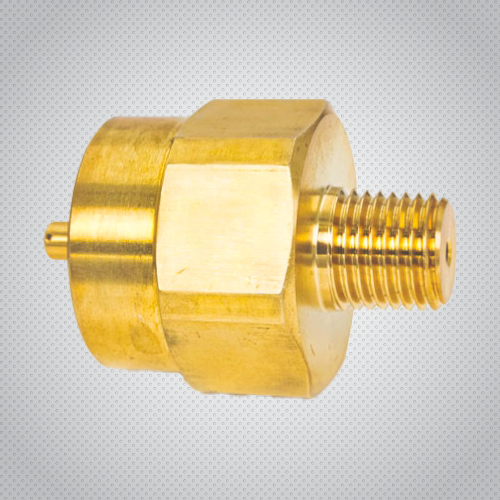

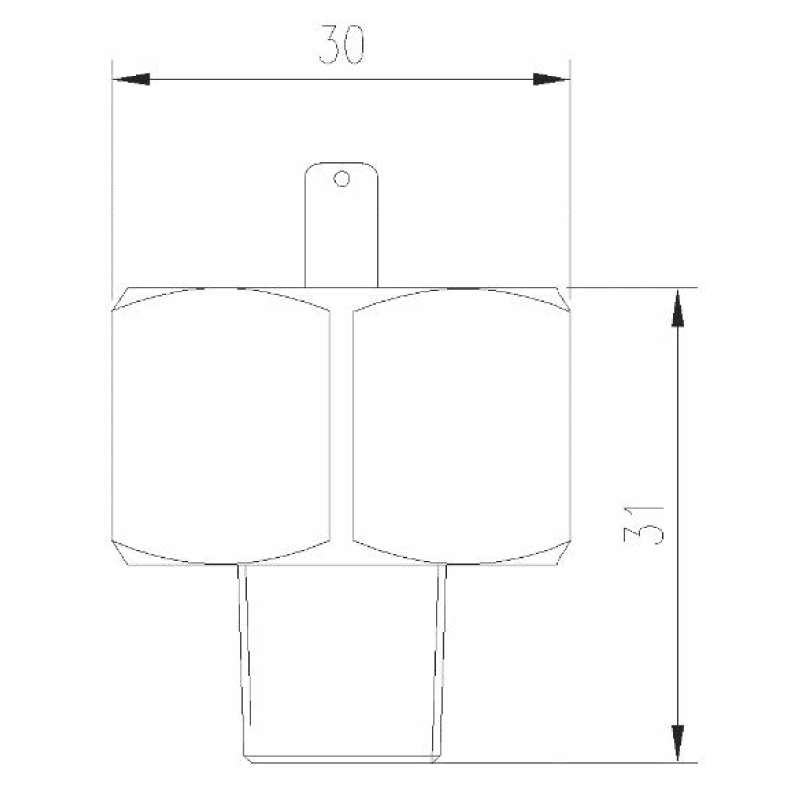

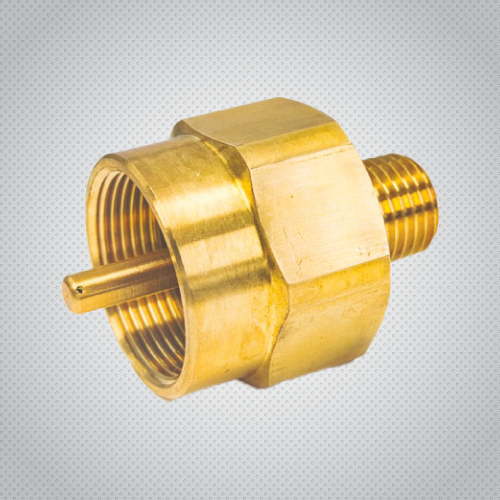

Model 702 Adaptor 1/4"NPTM - CGA600F - Brass

Materials of Construction

Part	Material
Body	Brass
CGA 600 Pin	Brass
Seats and Seals	Buna-N
Inlet Connection	¼" NPT Male
Outlet Connection	CGA-600(1" x 20UNEF)
WP	600 PSI

Warranty:All adaptors are warranted for 12 months.

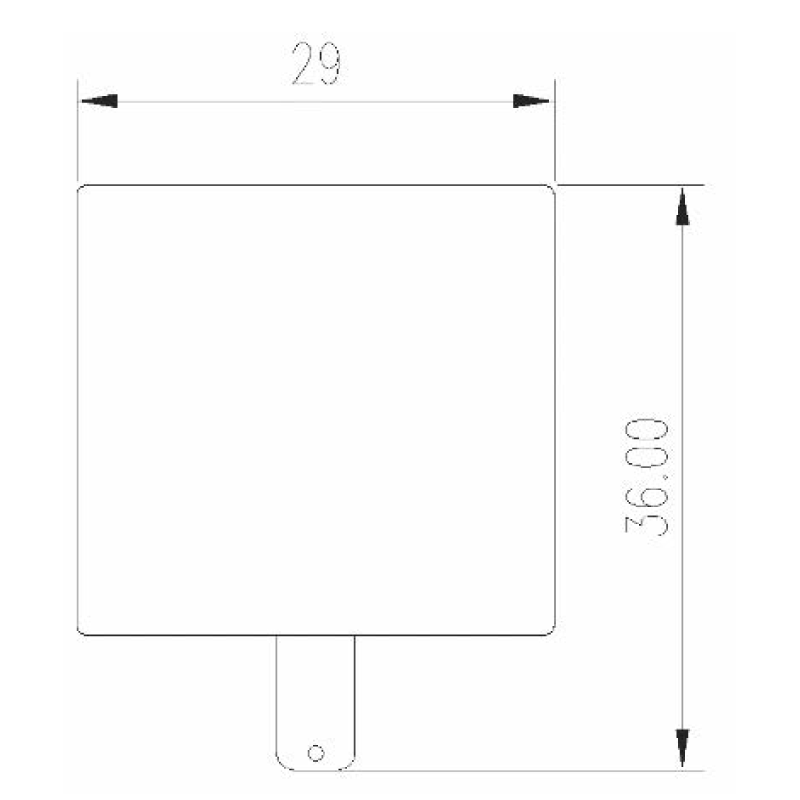

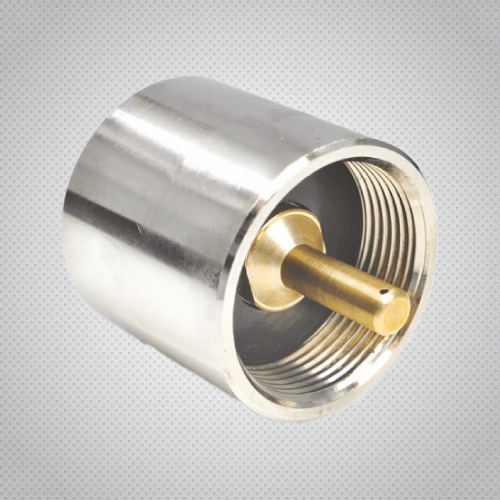

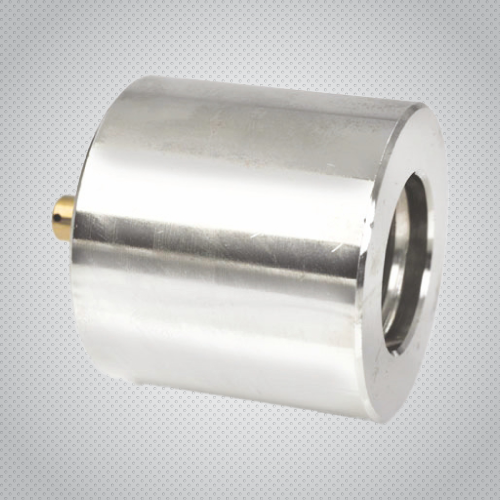

Model 703 Adaptor CGA600F- C10F Brass N.P.

Materials of Construction

Part	Material
Body	Brass N.P.
CGA 600 Pin	Brass
Seats and Seals	Buna-N
Inlet Connection	CGA 600
Outlet Connection	C10 Female
WP	600 PSI

Warranty:All adaptors are warranted for 12 months.

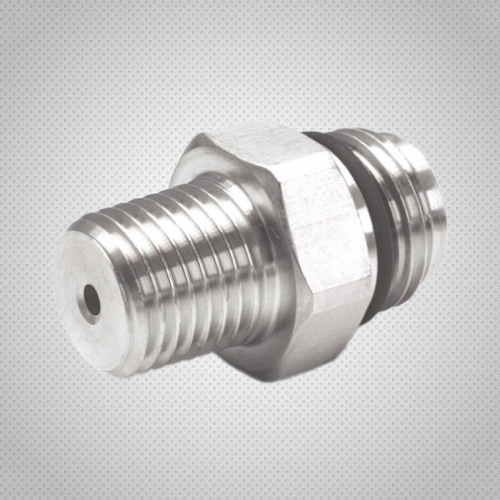

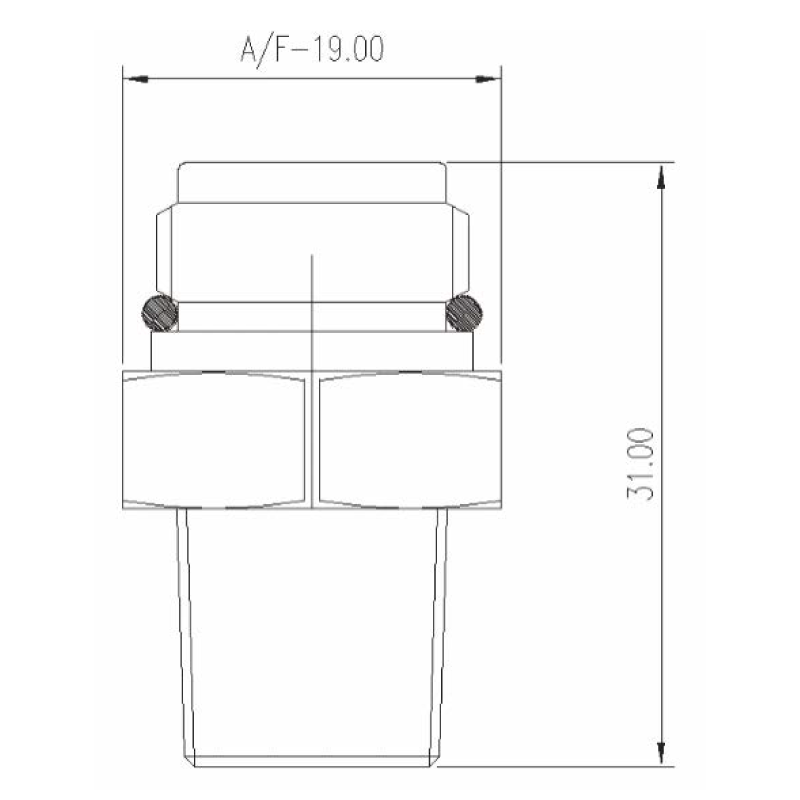

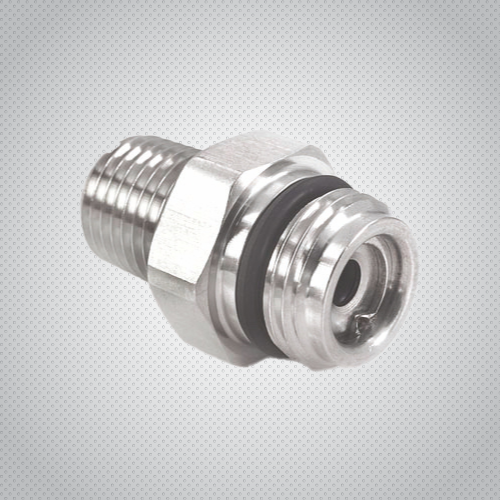

Model 704 Filling Adaptor ¼" NPT M - C10 M-SS

Materials of Construction

Part	Material
Body	Stainless Steel
Washer	Stainless Steel
Seals	Viton
Inlet Connection	¼" NPT Male
Outlet Connection	C10 Male
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.

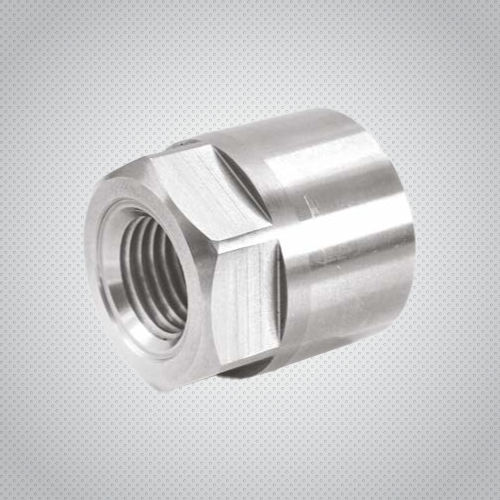

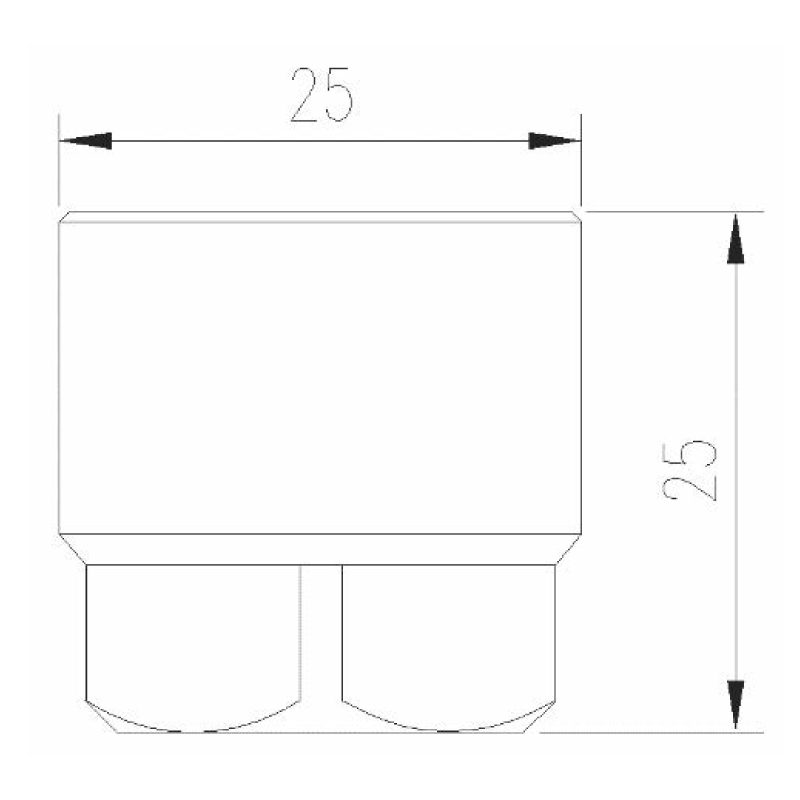

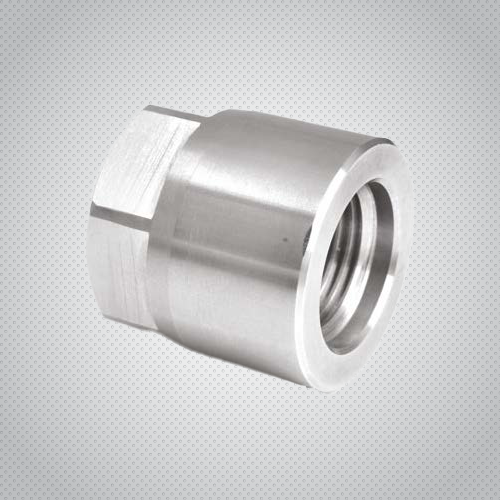

Model 705 Filling Adaptor 1/4" NPT F - C10 F-SS

Materials of Construction

Part	Material
Body	Stainless Steel
Inlet Connection	¼" NPT Female
Outlet Connection	C10 Female
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.

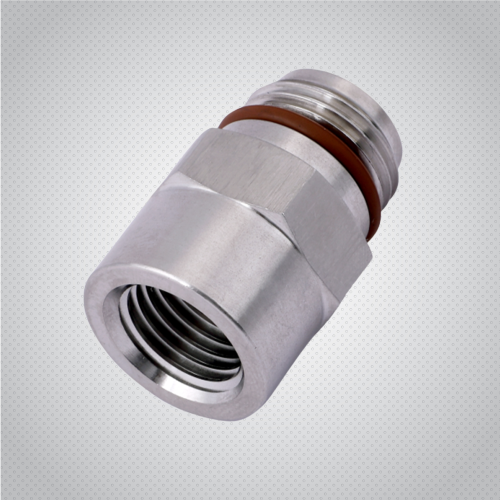

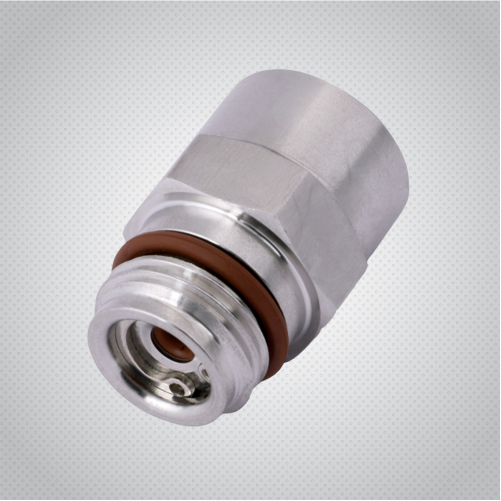

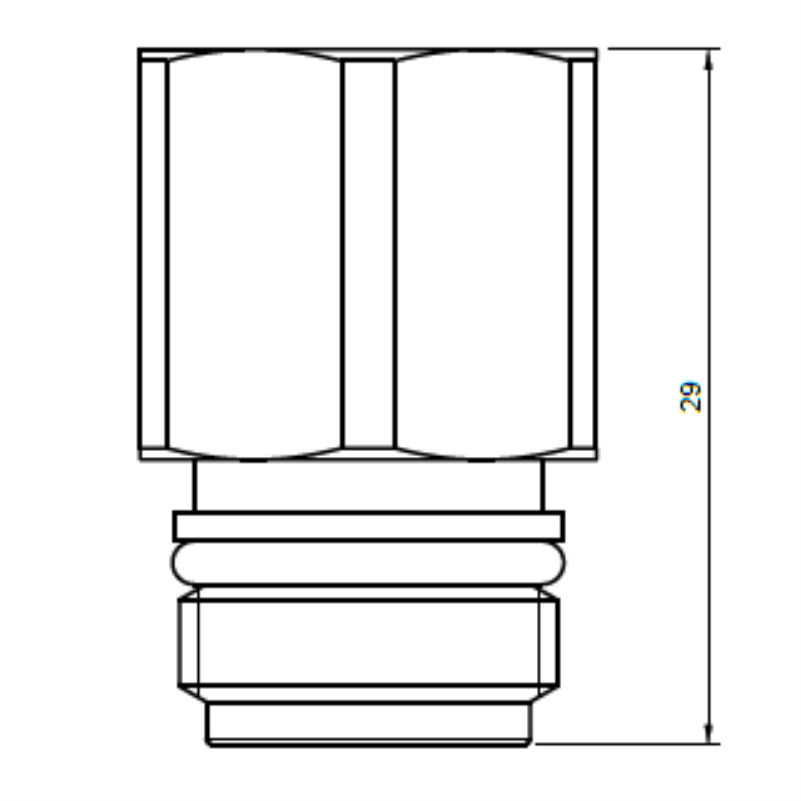

Model 706 Adaptor 1/4" NPT F - ClO M

Materials of Construction

Part	Material
Body	Stainless Steel
Seats and Seals	Viton
Inlet Connection	¼" NPT Female
Outlet Connection	Cl0 Male
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.

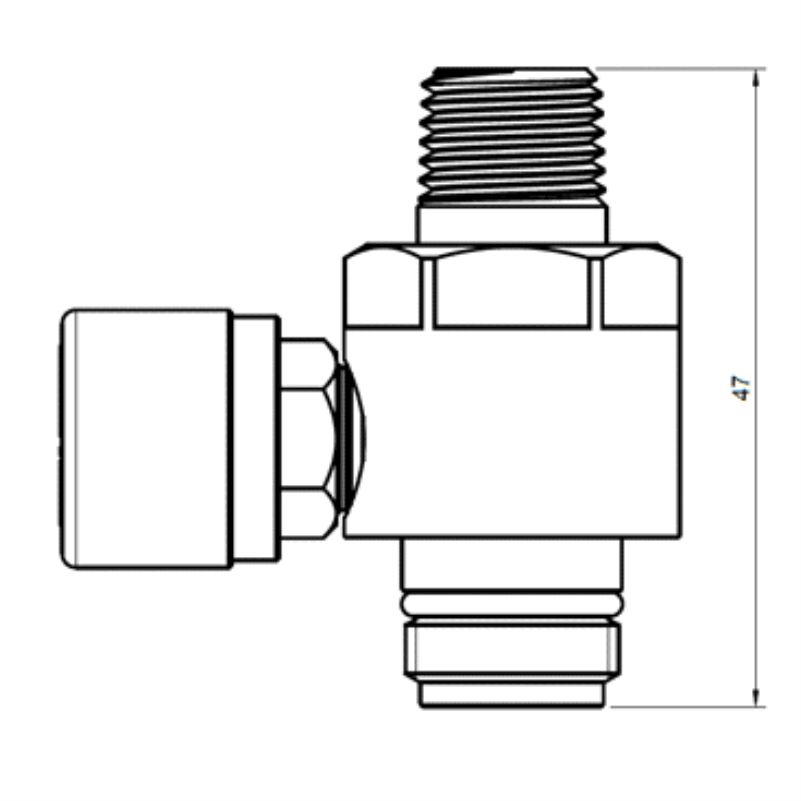

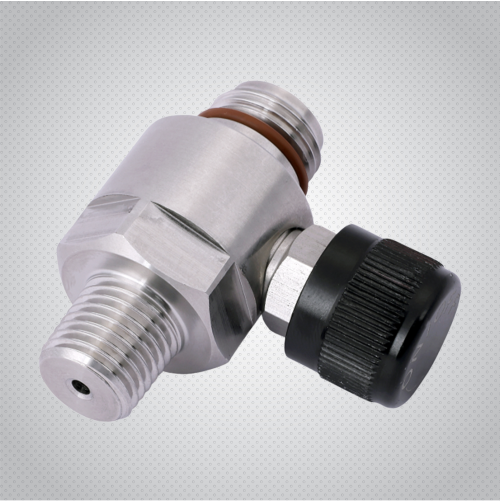

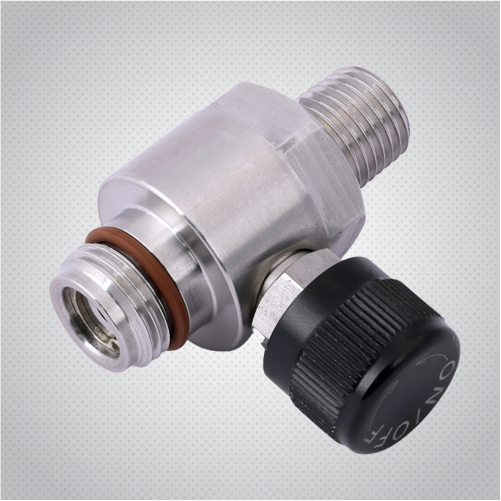

Model 707 Adaptor ClO M - 1/4" NPT M - ON/OFF - SS

Materials of Construction

Part	Material
Body	Stainless Steel
Knob	Aluminum Black Anodized
Seats and Seals	Viton
Inlet Connection	¼" NPT Male
Outlet Connection	Cl0 Male
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.

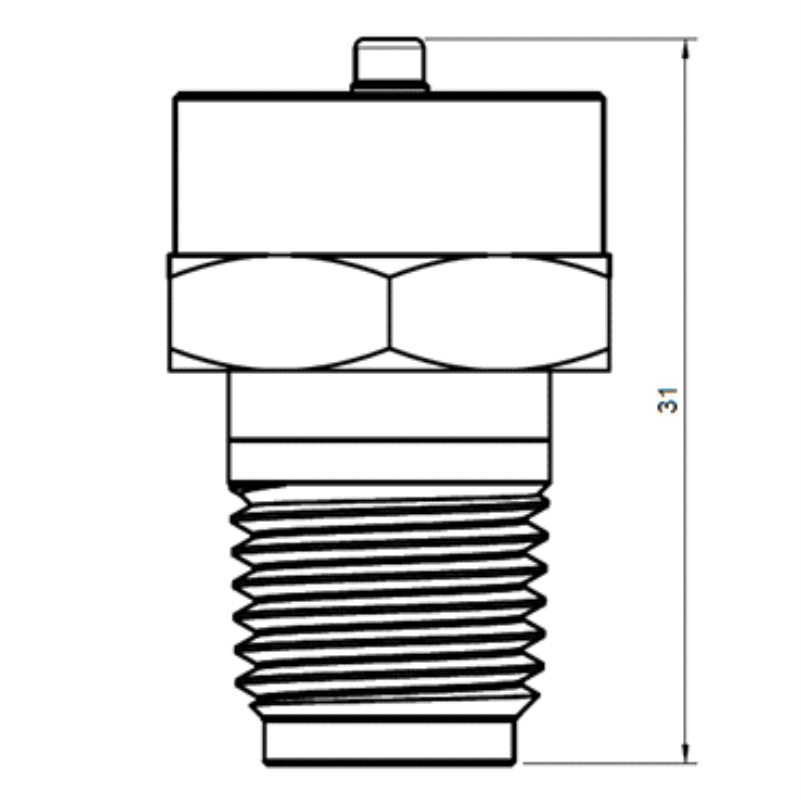

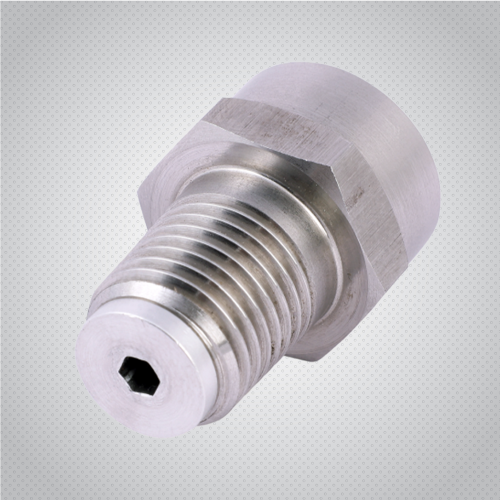

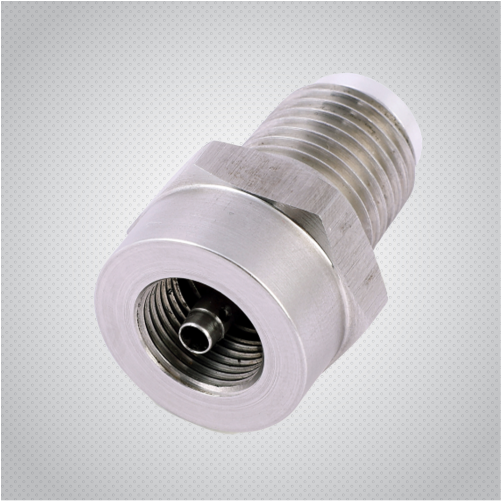

Model 708 Adaptor Aerosol F - 1/4" NPT M WITH VALVE - SS

Materials of Construction

Part	Material
Body	Stainless Steel
Seats and Seals	HNT
Inlet Connection	¼" NPT Male
Outlet Connection	Aerosol Female
WP	150 PSI

Warranty:All adaptors are warranted for 12 months.

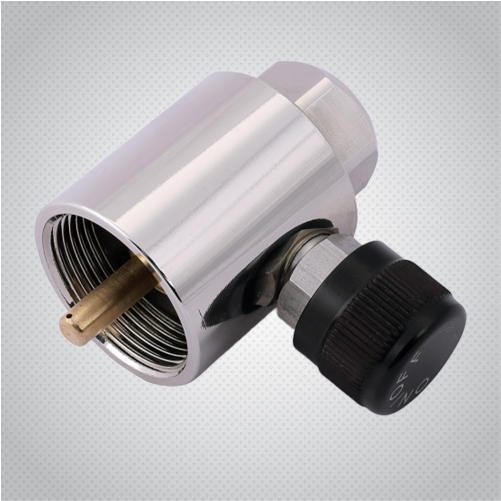

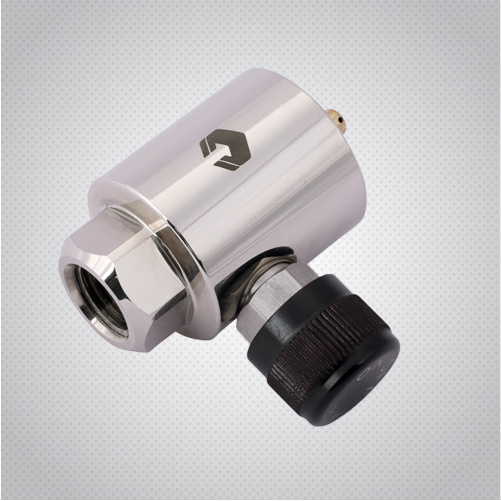

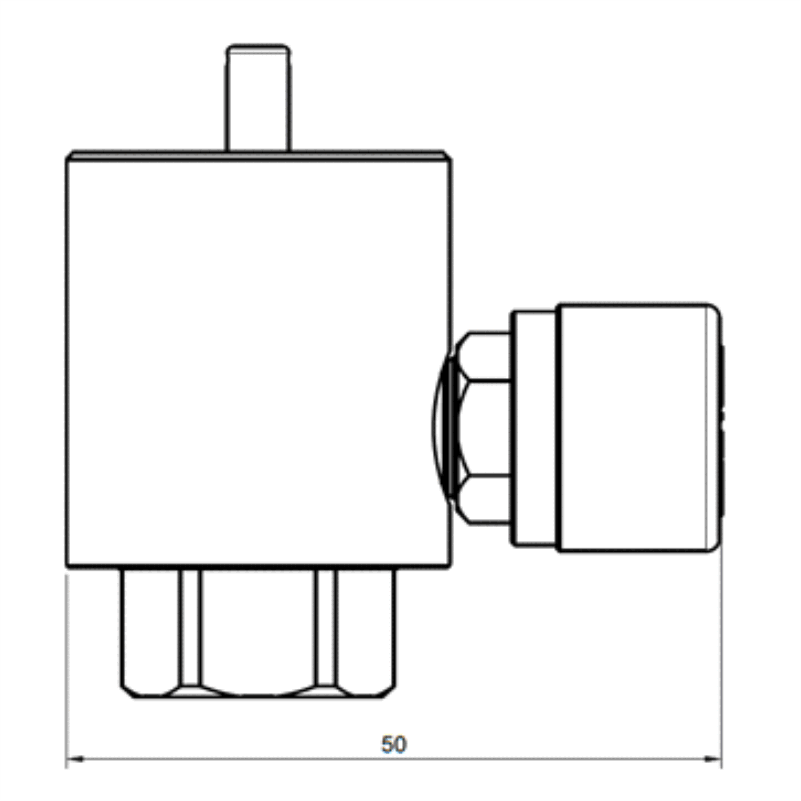

Model 709 Adaptor CGA600 F - 1/4" NPT F - ON/OFF - BNP

Materials of Construction

Part	Material
Body	Brass Nickel Plated
Inlet Connection	¼" NPT Female
Outlet Connection	CGA 600 Female
WP	600 PSI

Warranty:All adaptors are warranted for 12 months.

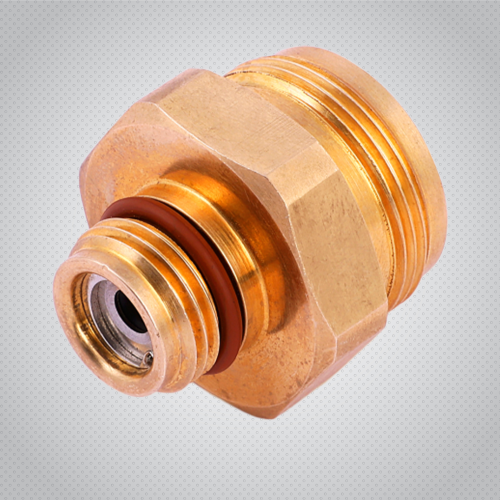

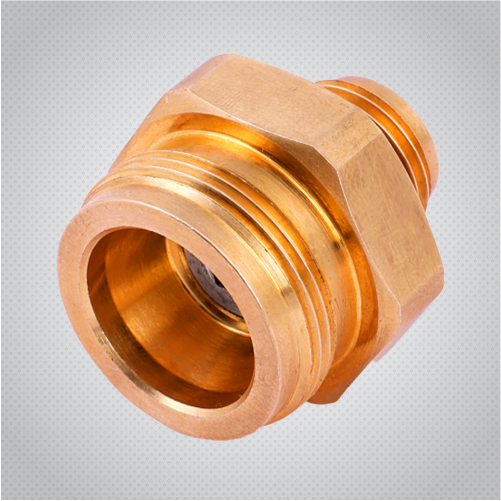

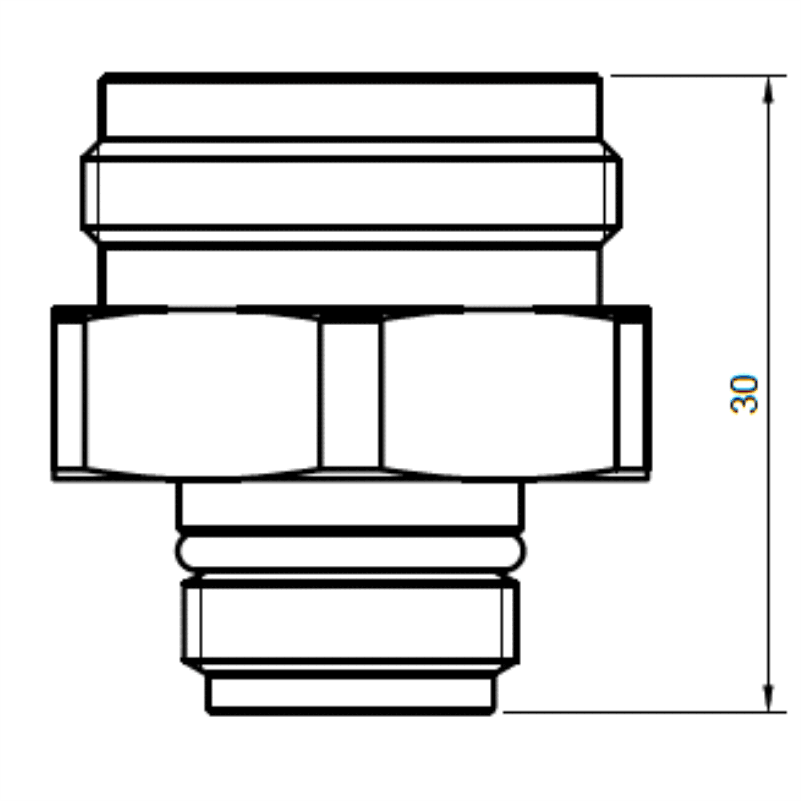

Model 710 Adaptor Cl0 M - CGA 600 M - Brass

Materials of Construction

Part	Material
Body	Brass
Seats and Seals	HNT
Inlet Connection	Cl0 Male
Outlet Connection	CGA 600 Male
WP	600 PSI

Warranty:All adaptors are warranted for 12 months.

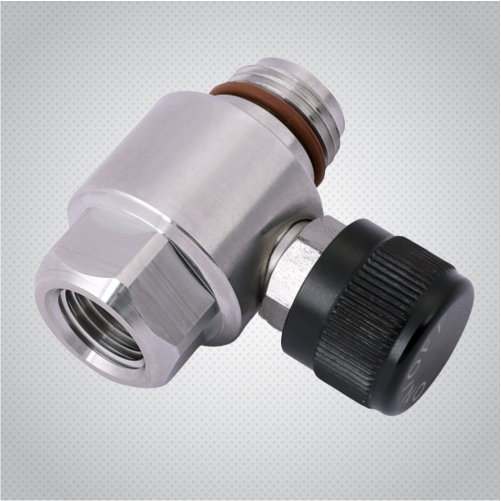

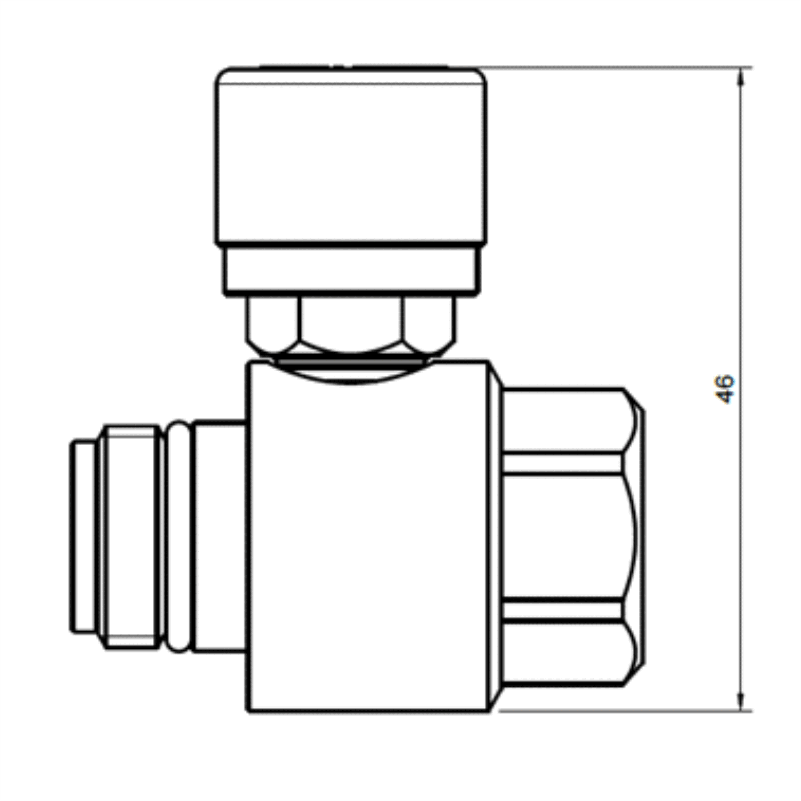

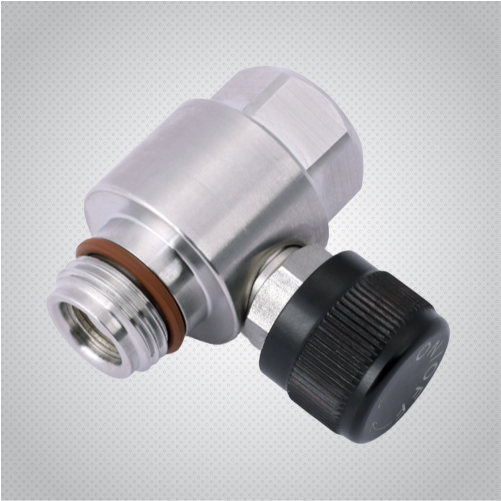

Model 711 Adaptor ClO M - 1/4" NPT F - ON/OFF - SS

Materials of Construction

Part	Material
Body	Stainless Steel
Knob	Aluminum Black Anodized
Seats and Seals	Viton
Inlet Connection	Cl0 Male
Outlet Connection	¼" NPT Male
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.

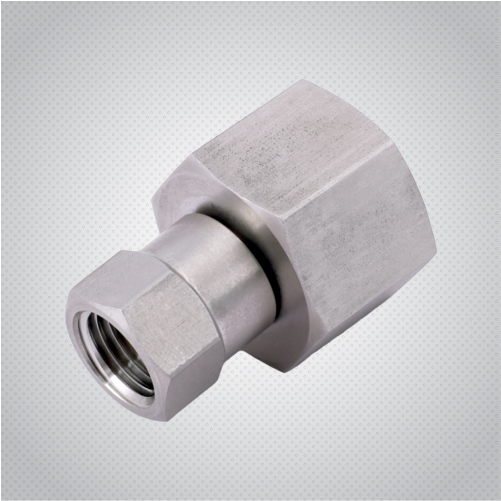

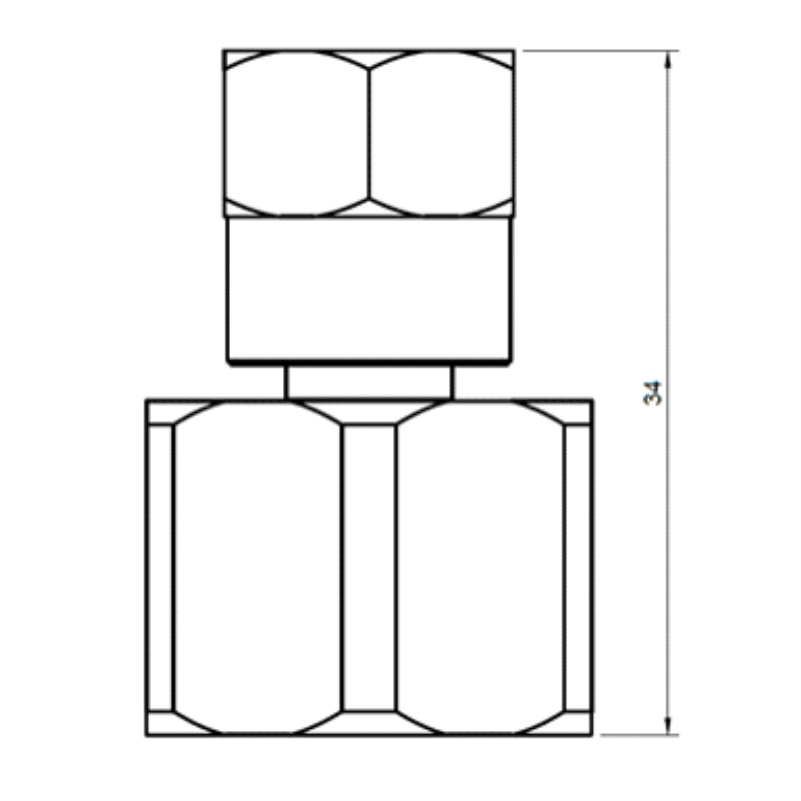

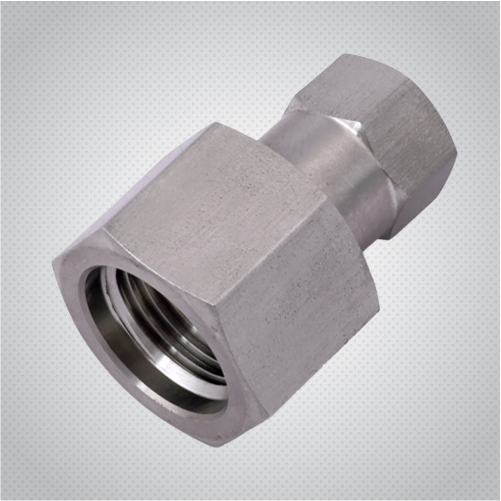

Model 712 Adaptor Cl0 F - CGA 165 F - 55

Materials of Construction

Part	Material
Body	Stainless Steel
Inlet Connection	Cl0 Female
Outlet Connection	CGA 165 Female 1200 PSI
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.

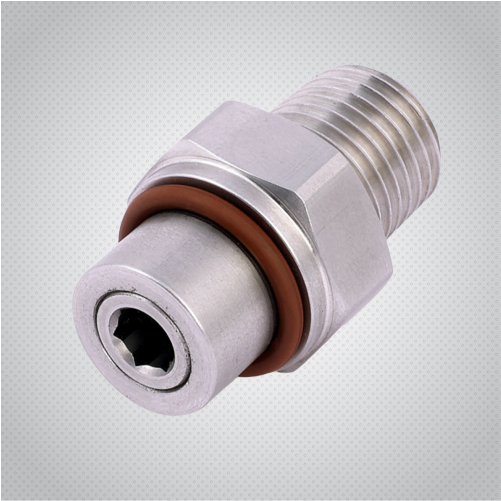

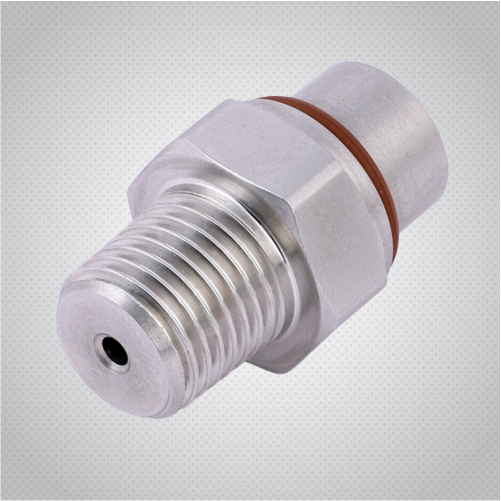

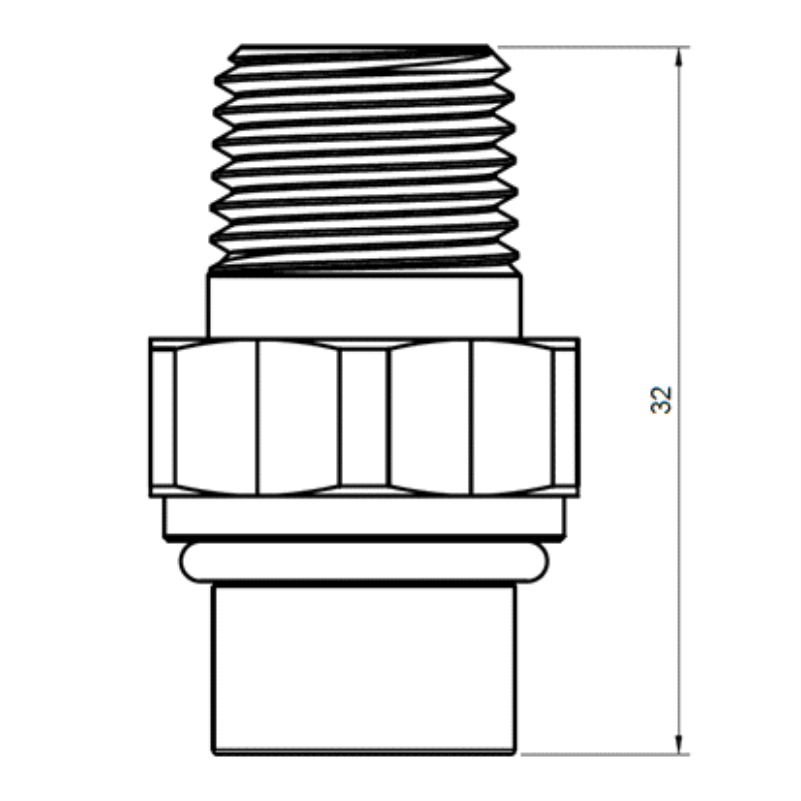

Model 713 Adaptor 1/4" NPT M - Cl0 M - PRESS TO CHECK - SS

Materials of Construction

Part	Material
Body	Stainless Steel
Inlet Connection	¼" NPT Male
Outlet Connection	Cl0 Male
WP	1200 PSI

Warranty:All adaptors are warranted for 12 months.
