Vari Flow Regulators 3000 Series

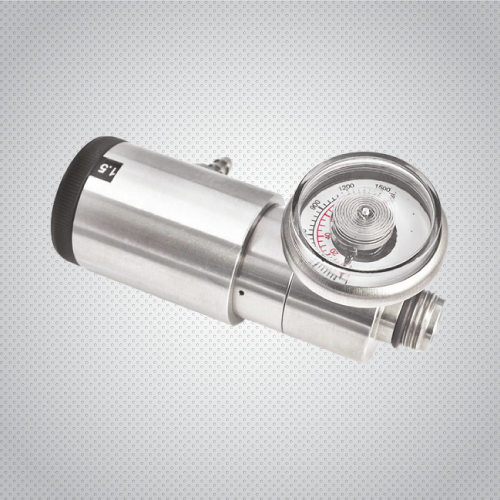

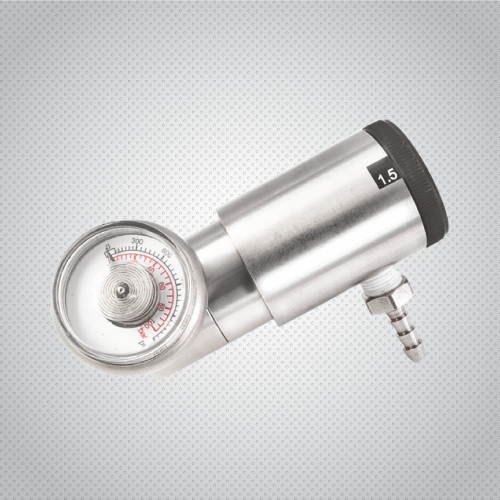

Model 3001 Vari Flow Regulator C10 Stainless Steel
The Vari Flow Regulator uses a single stage design which gives the end user a series of preset constant flow rates. The Dial on the top of the regulator is to be used to manually change the flow rates. Used for calibration gases & handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton & Buna-N |
| Bonnet | Aluminum Black Anodized |
Flow Rate Options
| 1. | 0-0.3-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7.0-8.0 L/Mn |
| 2. | 0-0.15-0.3-0.5-0. 75-1.0-1.25-1.5-1. 75-2.0-2.5-3.0 L/Mn |
| 3. | 0-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7 .0-10.0-15.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Flow Rates | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 3001 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | Refer flow rate table | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig 103 bar | 0.460 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 3001 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Flow Rates | Refer flow rate table |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 1500 psig 103 bar |
| Weight Kg | 0.460 Kg |

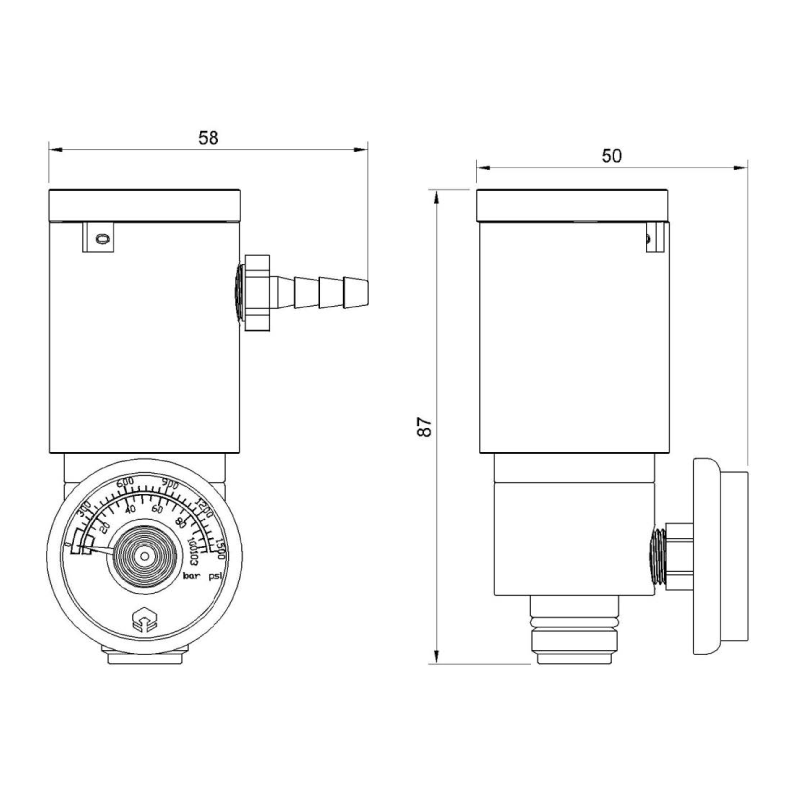

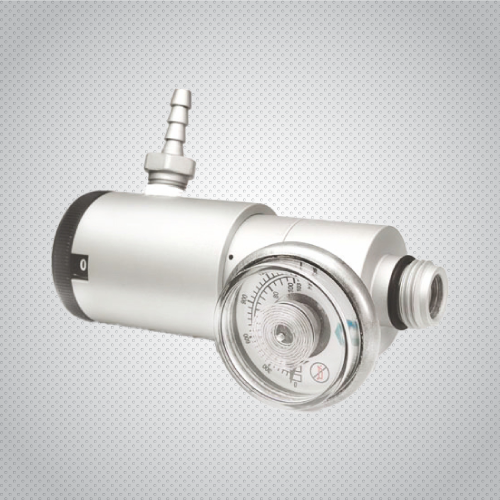

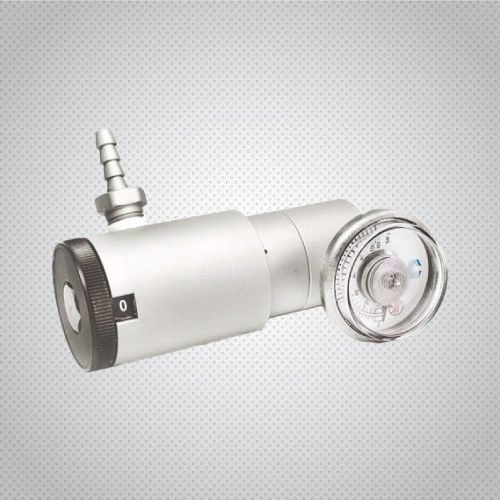

Model 3002 Vari Flow Regulator C10 Aluminum Anodized
The Vari Flow Regulator uses a single stage design which gives the end user a series of preset constant flow rates. The Dial on the top of the regulator is to be used to manually change the flow rates. Used for calibration gases & handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Aluminum Silver Anodized |
| Neck | Aluminum Silver Anodized |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Bonnet | Aluminum Black Anodized |
Flow Rate Options
| 1. | 0-0.3-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7.0-8.0 L/Mn |
| 2. | 0-0.15-0.3-0.5-0. 75-1.0-1.25-1.5-1. 75-2.0-2.5-3.0 L/Mn |
| 3. | 0-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7 .0-10.0-15.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Flow Rates | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 3002 | 0 to 1200 psig / 83 bar | Aluminium Anodized for Non-reactive Gases | Refer flow rate table | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Brass 0 to 1500 psig 103 bar | 0.200 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 3002 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Aluminium Anodized for Non-reactive Gases |
| Flow Rates | Refer flow rate table |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.200 Kg |
