Demand Flow Regulators 5000 Series

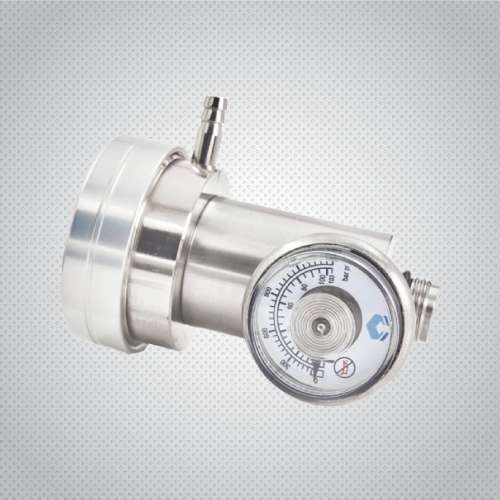

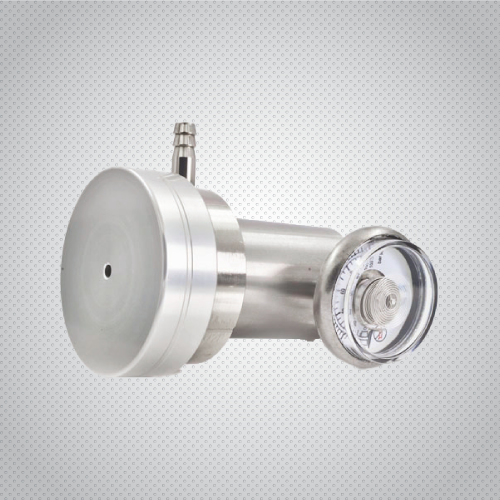

Model 5001 Demand Flow Regulator-C10-Brass NP
The Demand Flow Regulator-C10 is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Brass NP |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Diaphragm | Buna-N |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5001 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | 0 to 3" H20 / 5.6 mm Hg | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Brass 0 to 1500 psig 103 bar | 0.450 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5001 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.450 Kg |

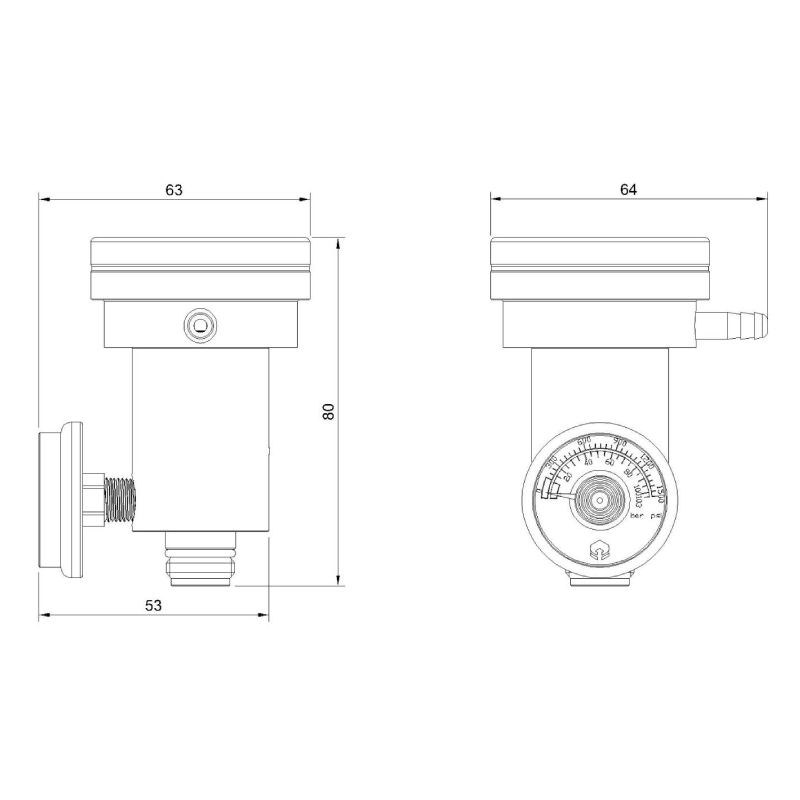

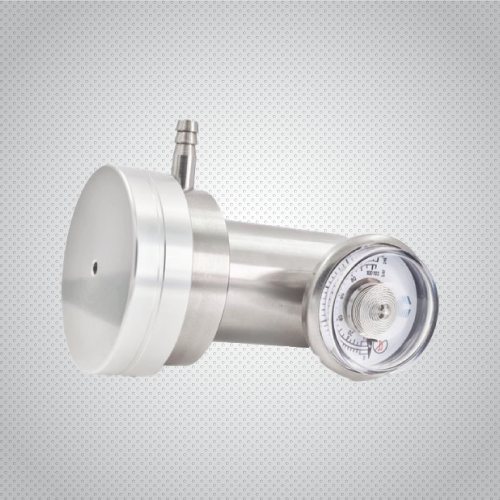

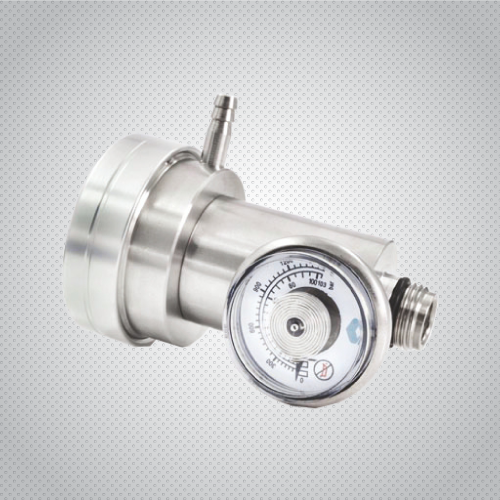

Model 5002 Demand Flow Regulator-C10-Stainless Steel
The Demand Flow Regulator-C10 is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Diaphragm | Viton |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5002 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | 0 to 3" H20 / 5.6 mm Hg | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig 103 bar | 0.430 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5002 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 1500 psig / 103 bar |
| Weight Kg | 0.430 Kg |

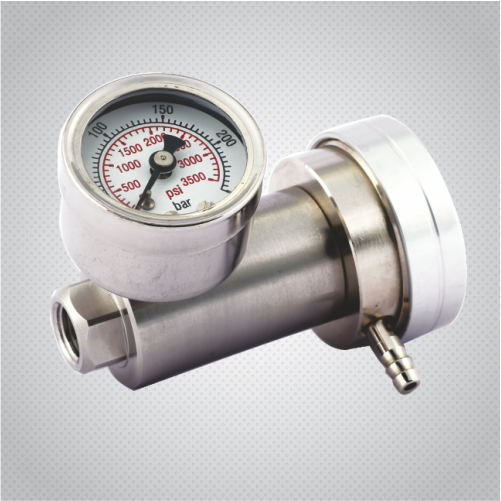

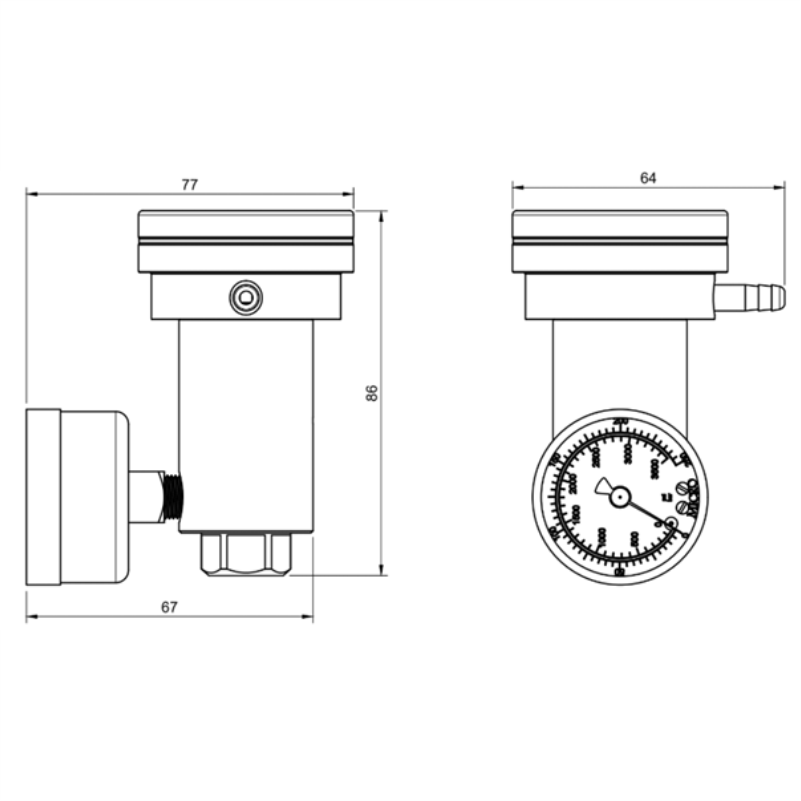

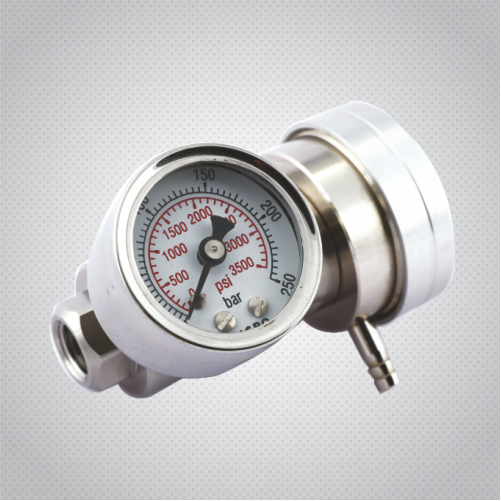

Model 5003 HP Demand Flow Regulator Brass NP
The High Pressure Demand Flow Regulator is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Brass NP |
| Piston | Brass |
| Seats and Seals | Teflon, Viton |
| Diaphragm | Viton |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5003 | 0 to 3000 psig / 207 bar | Brass NP for Non-reactive Gases | 0 to 3" H20 / 5.6 mm Hg | ¼" NPT-F | 3/16" Barb 4.8mm | Stainless Steel 0 to 3190 psig 220 bar | 0.470 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5003 |
|---|---|
| Maximum Inlet Pressure | 0 to 3000 psig / 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | ¼" NPT-F |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 3190 psig 220 bar |
| Weight Kg | 0.470 Kg |

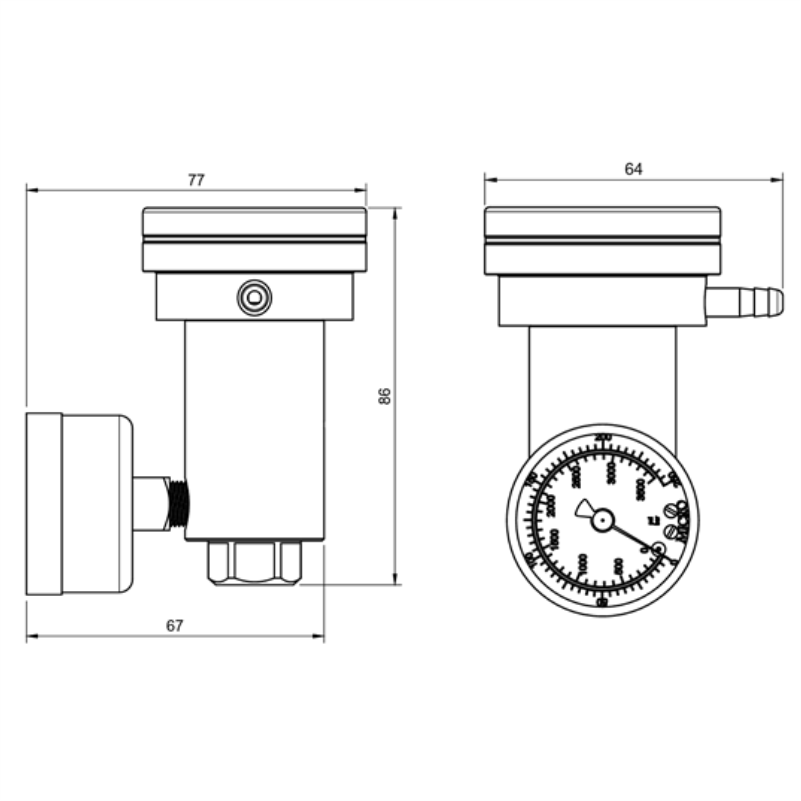

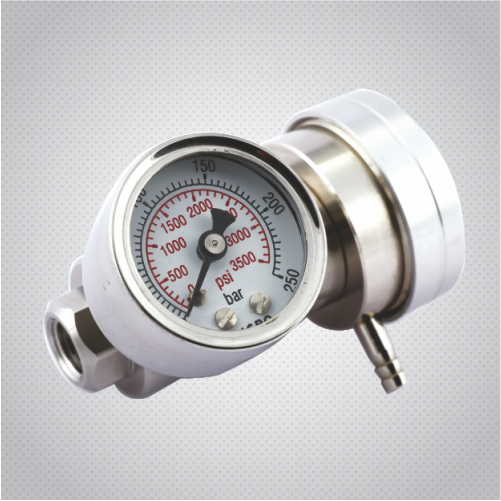

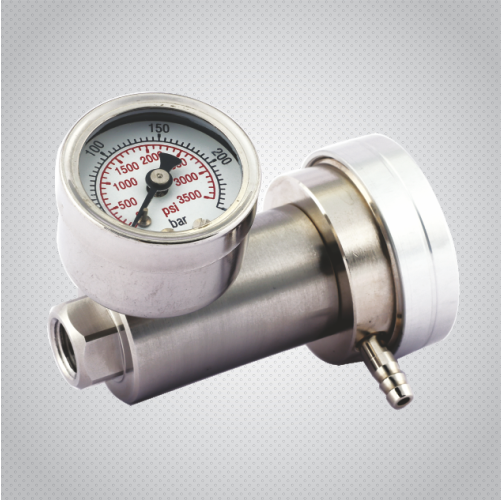

Model 5004 HP Demand Flow Regulator Stainless Steel
The High Pressure Demand Flow Regulator is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Diaphragm | Viton |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5004 | 0 to 3000 psig / 200 bar | Stainless Steel for Reactive Gases | 0 to 3" H20 / 5.6 mm Hg | ¼" NPT-F | 3/16" Barb 4.8mm | Stainless Steel 0 to 3190 psig 220 bar | 0.480 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5004 |
|---|---|
| Maximum Inlet Pressure | 0 to 3000 psig / 200 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | ¼" NPT-F |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 3190 psig 220 bar |
| Weight Kg | 0.480 Kg |

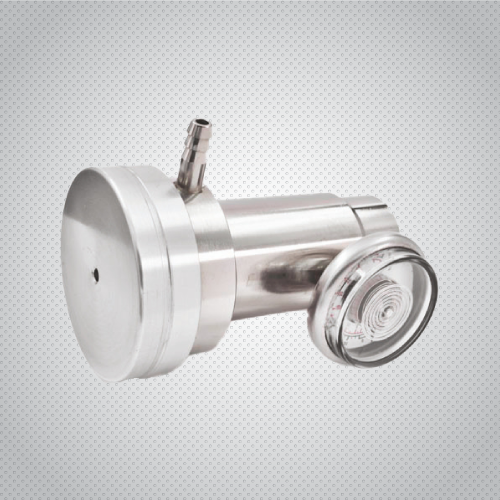

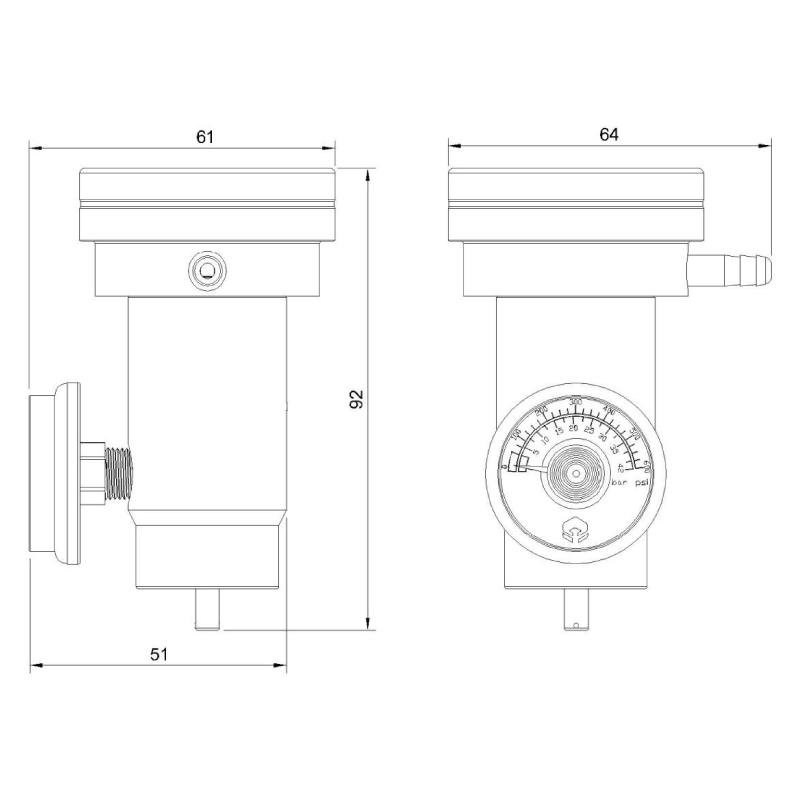

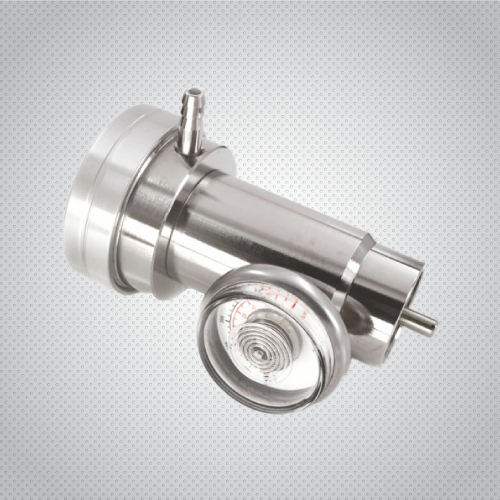

Model 5005 CGA 600 Demand Flow Regulator Brass NP
The CGA 600 Demand Flow Regulator is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass NP |
| Neck | Brass NP |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Diaphragm | Buna-N |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5005 | 0 to 600 psig / 200 bar | Brass NP for Non-reactive Gases | 0 to 3" H20 / 5.6 mm Hg | 1" x 20 UNF CGA600 | 3/16" Barb 4.8mm | Brass 0 to 600 psig 41 bar | 0.450 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5005 |
|---|---|
| Maximum Inlet Pressure | 0 to 600 psig / 200 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | 1" x 20 UNF CGA600 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 600 psig 41 bar |
| Weight Kg | 0.450 Kg |

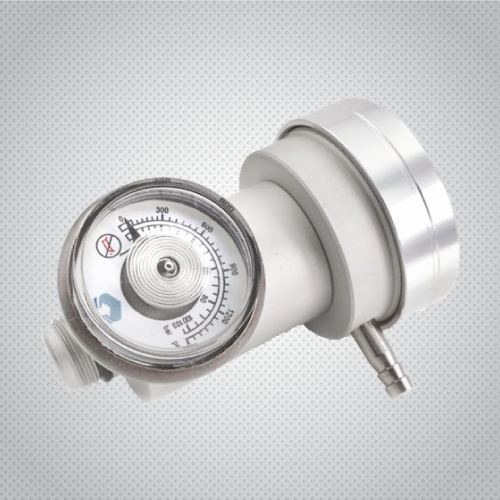

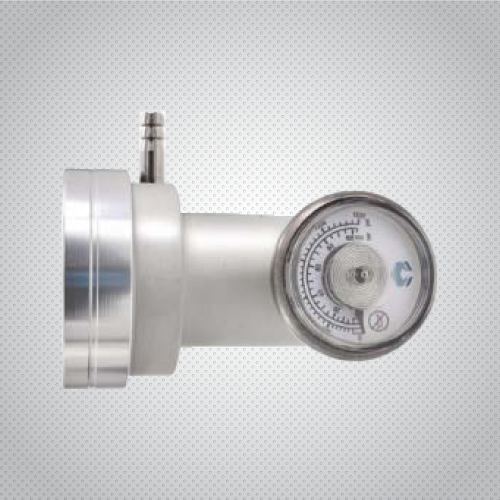

Model 5006 Demand Flow Regulator C10 Aluminum Anodized
The Demand Flow Regulator is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Aluminum Hard Anodized |
| Neck | Aluminum Hard Anodized |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Diaphragm | Buna-N |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5006 | 0 to 1200 psig / 83 bar | For Non-reactive Gases | 0 to 3" H20 / 5.6 mm Hg | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Brass 0 to 1500 psig 103 bar | 0.210 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5006 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | For Non-reactive Gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.210 Kg |

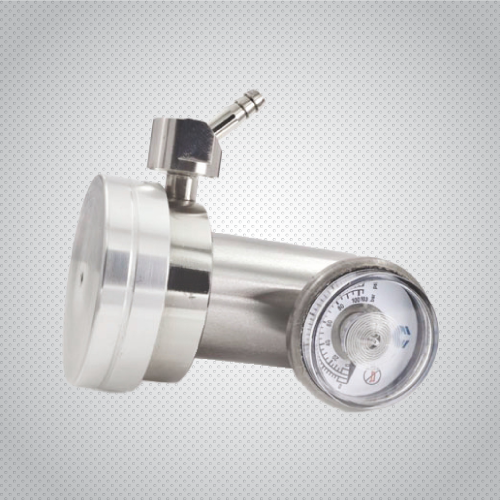

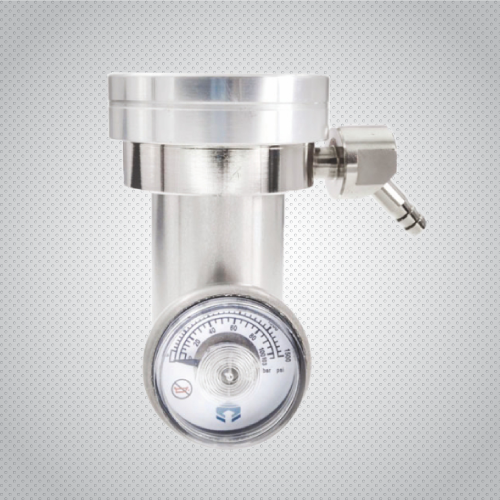

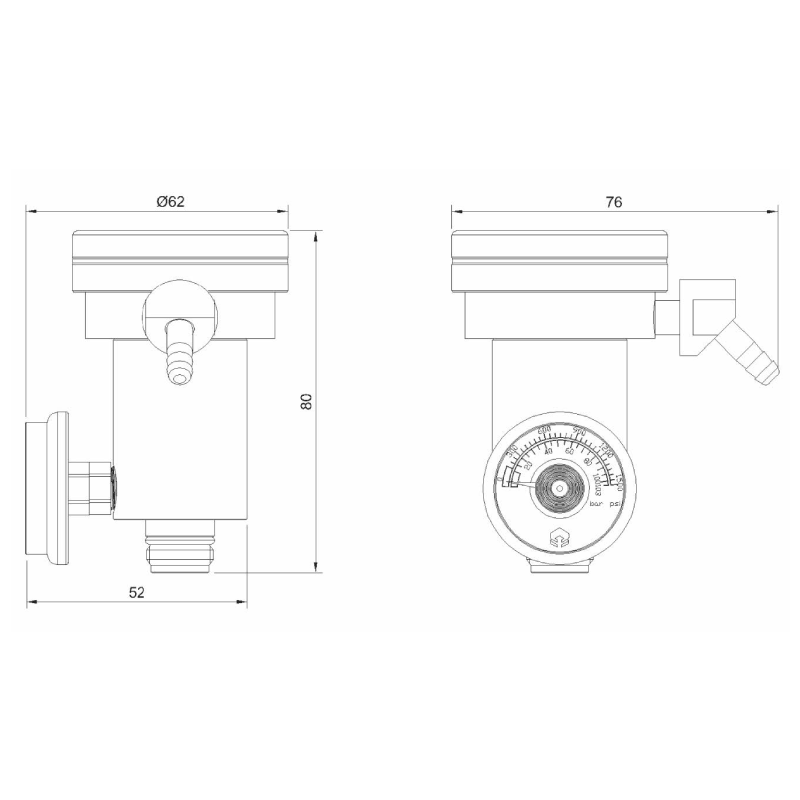

Model 5007 Demand Flow Regulator C10-45D-Brass NP
The Demand Flow Regulator is used for calibration gases, pump based instruments and handheld gas detectors. These regulators supply gas as demanded by the instrument and automatically shuts off.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Brass NP |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Diaphragm | Buna-N |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Maximum Vacuum Required For 3.0L/MN Flow | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 5007 | 0 to 1200 psig / 83 bar | Brass NP for Non-reactive Gases | 0 to 3" H20 / 5.6 mm Hg | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Brass 0 to 1500 psig 103 bar | 0.470 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 5007 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Maximum Vacuum Required For 3.0L/MN Flow | 0 to 3" H20 / 5.6 mm Hg |
| Inlet Connection | 5/8" x 18 UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 1500 psig / 103 bar |
| Weight Kg | 0.470 Kg |
