Dial-a-flow Regulators 2000 Series

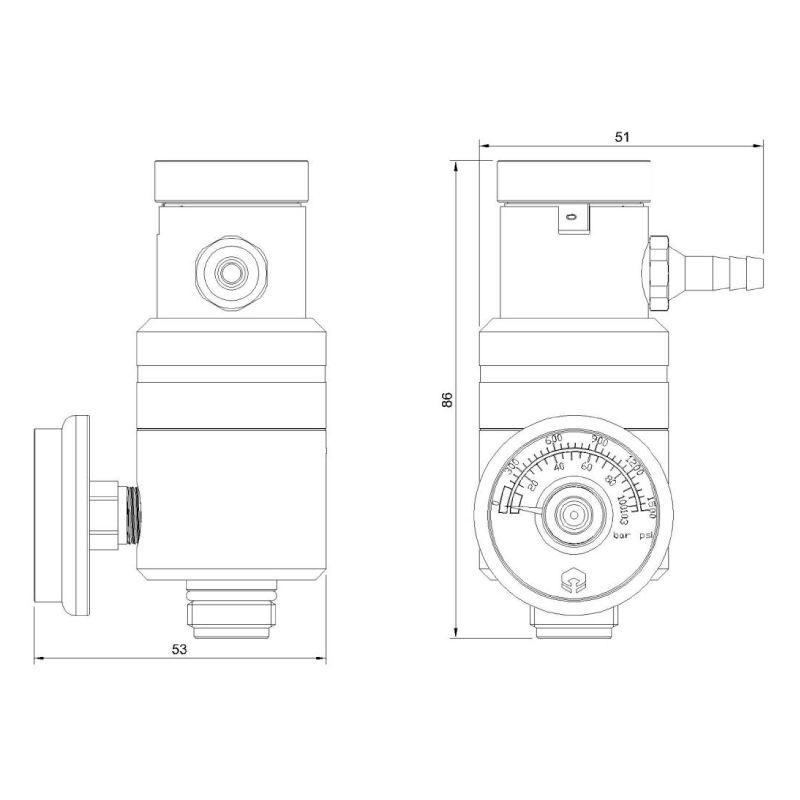

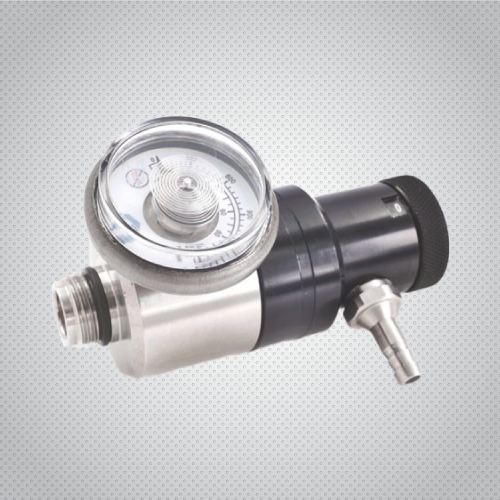

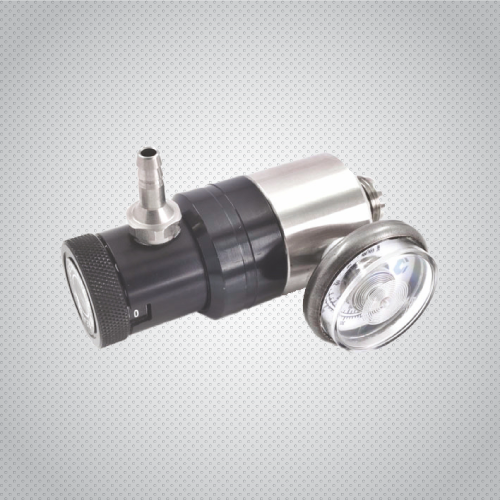

Model 2001 Dial-a-flow Regulator-C10-Brass NP
The Dial-A-Flow regulator uses a single stage design which give the end user a series of preset constant flow rates. The Dial on the top of the regulator is to be used to manually change the flow rates. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Aluminum Black Anodized |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Bonnet | Aluminum Black Anodized |
| Seals | Viton |
Flow Rate Options
| 1. | 0-0.3-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7.0-8.0 L/Mn |
| 2. | 0-0.15-0.3-0.5-0. 75-1.0-1.25-1.5-1. 75-2.0-2.5-3.0 L/Mn |
| 3. | 0-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7 .0-10.0-15.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Flow Rates | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 2001 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | Refer flow rate table | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Brass 0 to 1500 psig 103 bar | 0.350 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 2001 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Flow Rates | Refer flow rate table |
| Inlet Connection | 5/8"xl8UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.350 Kg |

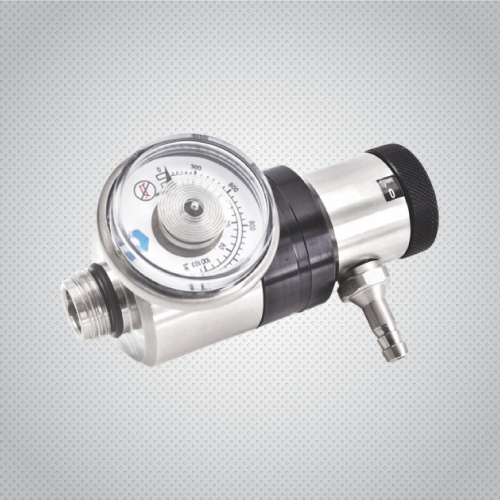

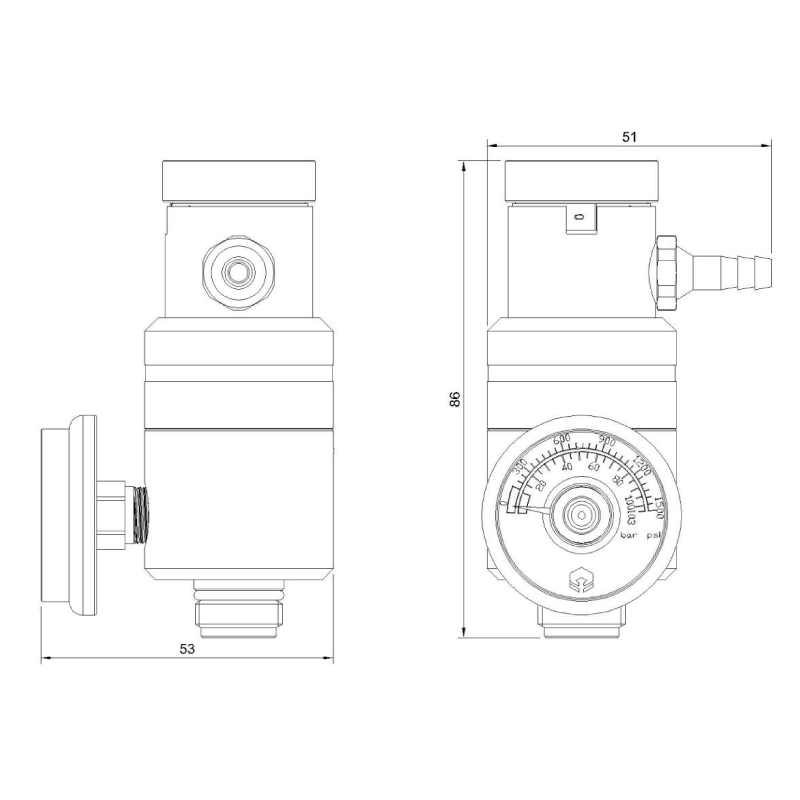

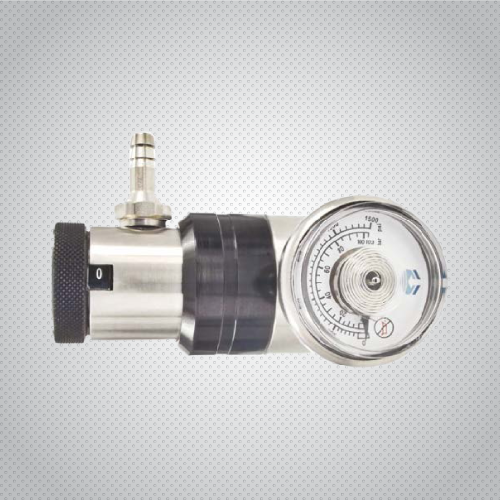

Model 2002 Dial-a-flow Regulator-C10-Stainless Steel
The Dial-A-Flow regulator uses a single stage design which give the end user a series of preset constant flow rates. The Dial on the top of the regulator is to be used to manually change the flow rates. Used for calibration gases and handheld gas detectors
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton & Buna-N |
| Bonnet | Aluminum Black Anodized |
Flow Rate Options
| 1. | 0-0.3-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7.0-8.0 L/Mn |
| 2. | 0-0.15-0.3-0.5-0. 75-1.0-1.25-1.5-1. 75-2.0-2.5-3.0 L/Mn |
| 3. | 0-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7 .0-10.0-15.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Flow Rates | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 2002 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | Refer flow rate table | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig 103 bar | 0.380 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 2002 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Flow Rates | Refer flow rate table |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 1500 psig 103 bar |
| Weight Kg | 0.380 Kg |

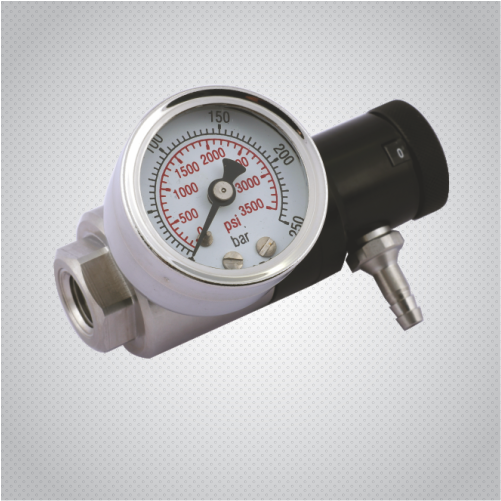

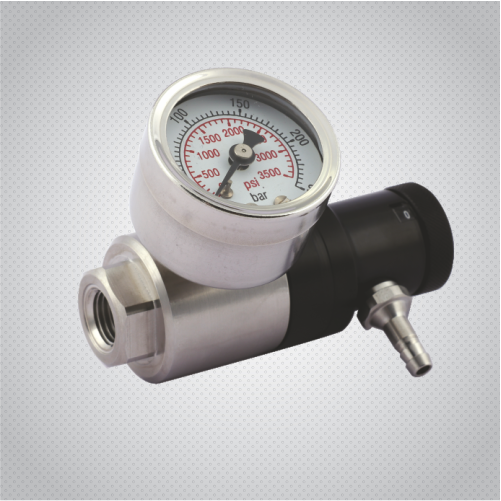

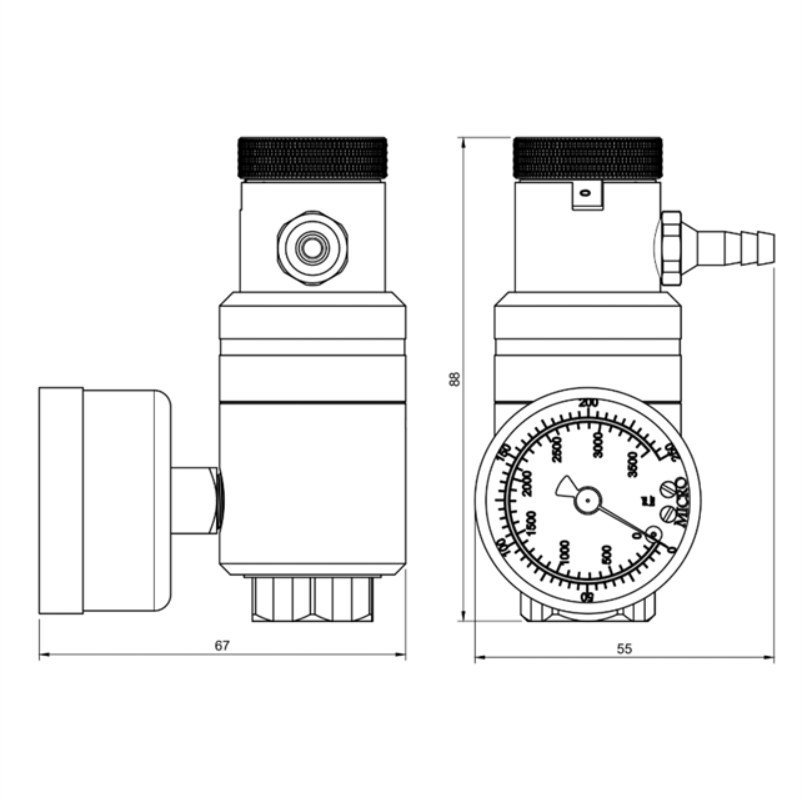

Model 2003 HP Dial-a-flow Regulator Brass NP
The Dial-A-Flow regulator uses a single stage design which give the end user a series of preset constant flow rates. The Dial on the top of the regulator is to be used to manually change the flow rates. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Aluminum Black Anodized |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Bonnet | Aluminum Black Anodized |
Flow Rate Options
| 1. | 0-0.3-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7.0-8.0 L/Mn |
| 2. | 0-0.15-0.3-0.5-0. 75-1.0-1.25-1.5-1. 75-2.0-2.5-3.0 L/Mn |
| 3. | 0-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7 .0-10.0-15.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Flow Rates | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 2003 | 0 to 3000 psig / 207 bar | Brass NP for Non-reactive Gases | Refer flow rate table | ¼" NPT Female | 3/16" Barb 4.8mm | Brass 0 to 3190 psig 220 bar | 0.400 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 2003 |
|---|---|
| Maximum Inlet Pressure | 0 to 3000 psig / 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Flow Rates | Refer flow rate table |
| Inlet Connection | ¼" NPT Female |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 3190 psig 220 bar |
| Weight Kg | 0.400 Kg |

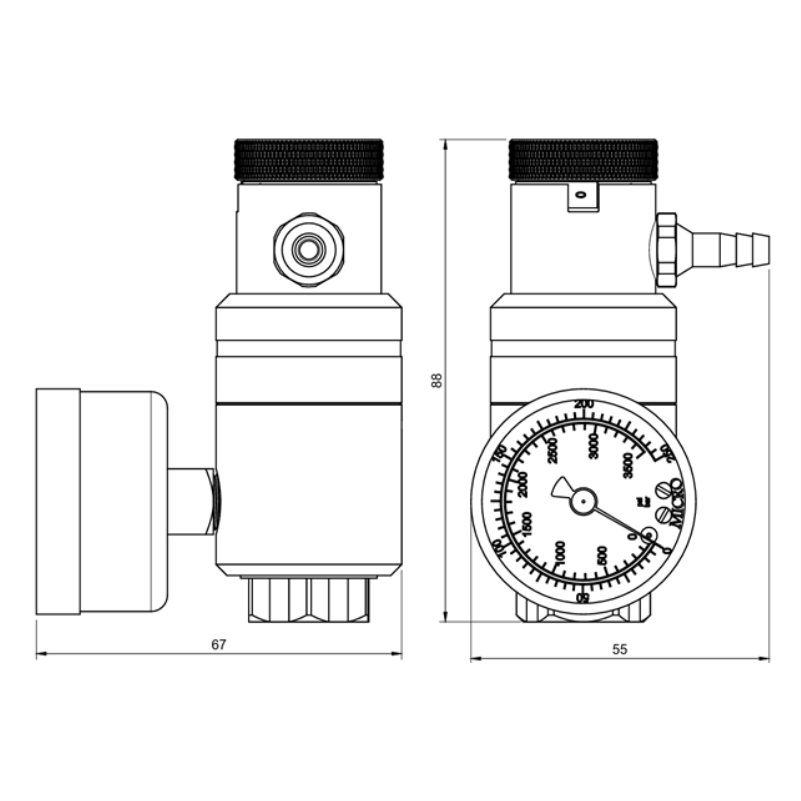

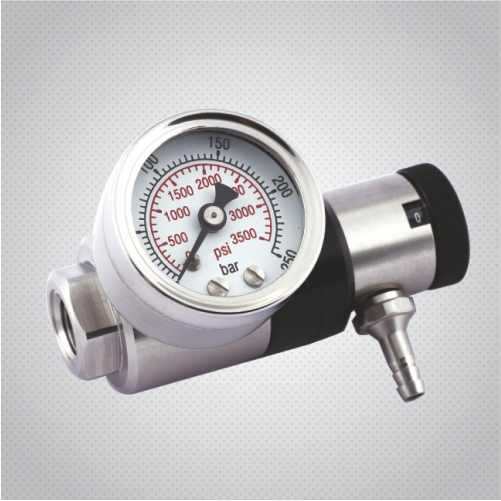

Model 2004 HP Dial-a-flow Regulator Stainless Steel
The Dial-A-Flow regulator uses a single stage design which give the end user a series of preset constant flow rates. The Dial on the top of the regulator is to be used to manually change the flow rates. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Neck | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton & Buna-N |
| Bonnet | Aluminum Black Anodized |
Flow Rate Options
| 1. | 0-0.3-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7.0-8.0 L/Mn |
| 2. | 0-0.15-0.3-0.5-0. 75-1.0-1.25-1.5-1. 75-2.0-2.5-3.0 L/Mn |
| 3. | 0-0.5-l.0-l.5-2.0-2.5-3.0-5.0-6.0-7 .0-10.0-15.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Flow Rates | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 2004 | 0 to 3000 psig / 207 bar | Stainless Steel for Reactive Gases | Refer flow rate table | ¼" NPT Female | 3/16" Barb 4.8mm | Stainless Steel 0 to 3190 psig 220 bar | 0.430 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 2004 |
|---|---|
| Maximum Inlet Pressure | 0 to 3000 psig / 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Flow Rates | Refer flow rate table |
| Inlet Connection | ¼" NPT Female |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 3190 psig 220 bar |
| Weight Kg | 0.430 Kg |
