Pressure Reducing Regulators 1200 Series

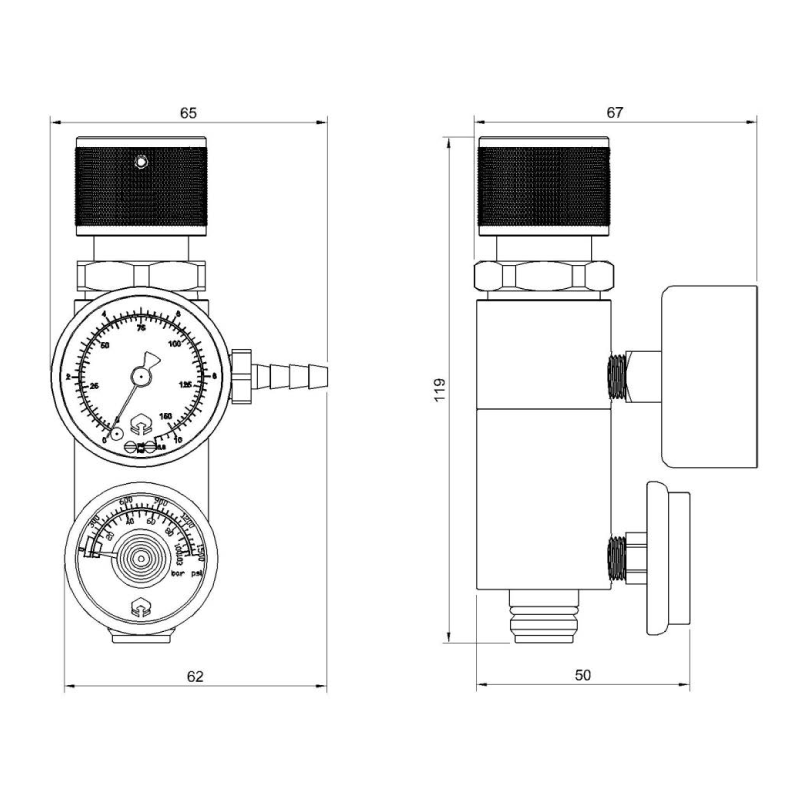

Model 1210 Pressure Reducing Regulator C10 Brass NP (Two Stage)
The 1210 regulators are adjustable two stage pressure reducing regulators. The two stage designs provides precise and stable outlet pressure as the inlet pressure reduces gradually.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Stainless Steel |
| Lock Nut | Brass Nickel Plated |
| Piston | Brass |
| Valve Seat | PCTFE |
| Seals | Viton |
| Diaphragm | SS316 |
| Control Knob | Aluminum Anodized |
Outlet pressure options for all the variants
| Outlet Pressure | Outlet Pressure Gauge |
|---|---|
| 0 to 1 bar | 0 to 2 bar |
| 0 to 4 bar | 0 to 10 bar |
| 0 to 7 bar | 0 to 10 bar |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1210 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig / 103 bar | 0.570 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1210 |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 1500 psig / 103 bar |
| Weight Kg | 0.570 Kg |

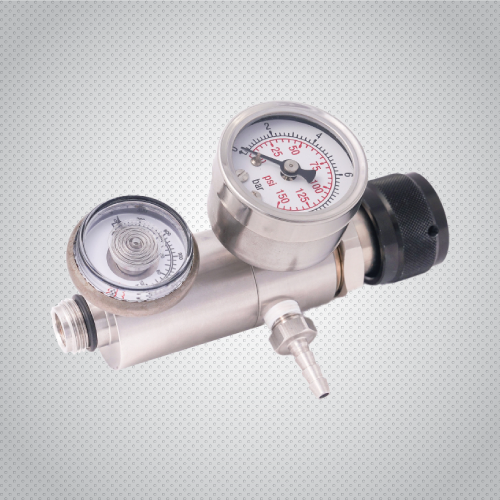

Model 1220 Pressure Reducing Regulator C10 SS (Two Stage)
The 1220 regulators are adjustable two stage pressure reducing regulators. The two stage designs provides precise and stable outlet pressure as The inlet pressure reduces gradually.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Stainless Steel |
| Lock Nut | Brass Nickel Plated |
| Piston | Stainless Steel |
| Valve Seat | PCTFE |
| Seals | Viton |
| Diaphragm | SS316 |
| Control Knob | Aluminum Anodized |
Outlet pressure options for all the variants
| Outlet Pressure | Outlet Pressure Gauge |
|---|---|
| 0 to 1 bar | 0 to 2 bar |
| 0 to 4 bar | 0 to 10 bar |
| 0 to 7 bar | 0 to 10 bar |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1220 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig / 103 bar | 0.570 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1220 |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 1500 psig / 103 bar |
| Weight Kg | 0.570 Kg |

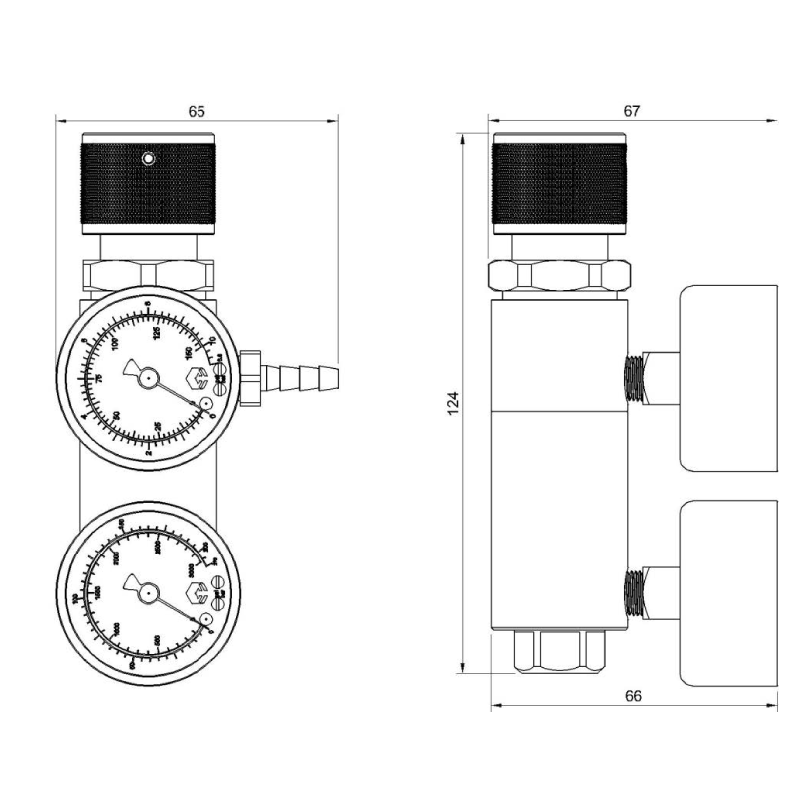

Model 1230 HP Pressure Reducing Regulator Brass NP (Two Stage)
The 1230 regulators are adjustable two stage pressure reducing regulators. The two stage designs provides precise and stable outlet pressure as the inlet pressure reduces gradually.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Stainless Steel |
| Lock Nut | Brass Nickel Plated |
| Piston | Brass |
| Valve Seat | PCTFE |
| Seals | Viton |
| Diaphragm | SS316 |
| Control Knob | Aluminum Anodized |
Outlet pressure options for all the variants
| Outlet Pressure | Outlet Pressure Gauge |
|---|---|
| 0 to 1 bar | 0 to 2 bar |
| 0 to 4 bar | 0 to 10 bar |
| 0 to 7 bar | 0 to 10 bar |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1230 | 0 to 3000 psig / 207 bar | Brass NP for Non-reactive Gases | ¼" FNPT | 3/16" Barb 4.8mm | Brass 0 to 3190 psig / 220 bar | 0.660 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1230 |
|---|---|
| Working Pressure | 0 to 3000 psig / 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | ¼" FNPT |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 3190 psig/ 220 bar |
| Weight Kg | 0.660 Kg |

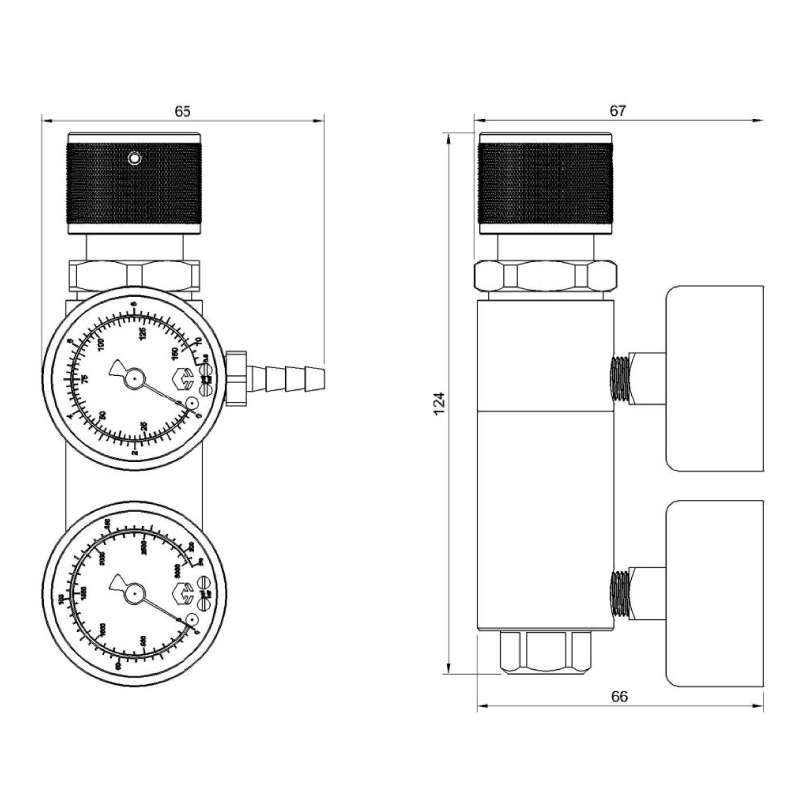

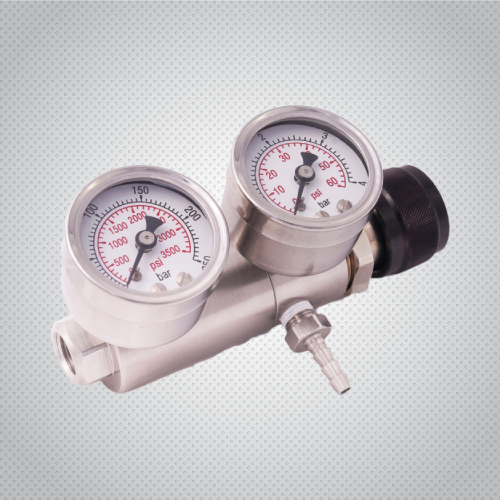

Model 1240 HP Pressure Reducing Regulator SS (Two Stage)
The 1240 regulators are adjustable two stage pressure reducing regulators. The two stage designs provides precise and stable outlet pressure as the inlet pressure reduces gradually.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Stainless Steel |
| Lock Nut | Brass Nickel Plated |
| Piston | Stainless Steel |
| Valve Seat | PCTFE |
| Seals | Viton |
| Diaphragm | SS316 |
| Control Knob | Aluminum Anodized |
Outlet pressure options for all the variants
| Outlet Pressure | Outlet Pressure Gauge |
|---|---|
| 0 to 1 bar | 0 to 2 bar |
| 0 to 4 bar | 0 to 10 bar |
| 0 to 7 bar | 0 to 10 bar |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1240 | 0 to 3000 psig / 207 bar | Stainless Steel for Reactive Gases | ¼" NPT Female | 3/16" Barb 4.8mm | Stainless Steel 0 to 3190 psig / 220 bar | 0.661 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1240 |
|---|---|
| Working Pressure | 0 to 3000 psig / 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Inlet Connection | ¼" NPT Female |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 3190 psig / 220 bar |
| Weight Kg | 0.661 Kg |

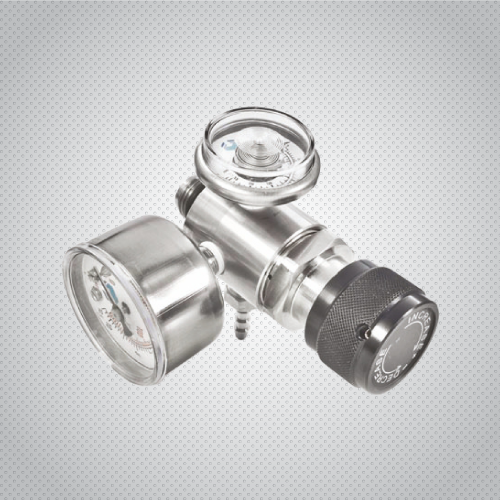

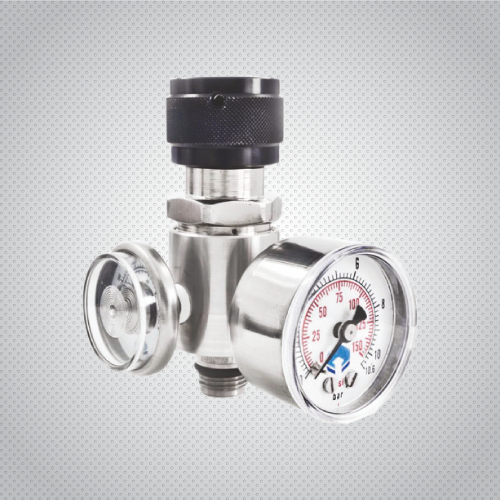

Model 1250-M Pressure Reducing Regulator C10 Brass NP (Single Stage)
The 1250-M regulators are adjustable single stage pressure reducing regulators. These single stage designs provides stable outlet pressure irrespective to the reducing inlet pressure.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Brass |
| Lock Nut | Brass NP |
| Valve Seat | PCTFE |
| Seals | Viton |
| Diaphragm | SS316 |
| Control Knob | Aluminum Anodized |
Outlet pressure options for all the variants
| Outlet Pressure | Outlet Pressure Gauge |
|---|---|
| 0 to 1 bar | 0 to 2 bar |
| 0 to 4 bar | 0 to 10 bar |
| 0 to 7 bar | 0 to 10 bar |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1250-M | 0 to 1200 psig / 83 bar | Brass NP for Non-reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Brass 0 to 1500 psig/ 103 bar | 0.380 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1250-M |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Brass 0 to 1500 psig/ 103 bar |
| Weight Kg | 0.380 Kg |

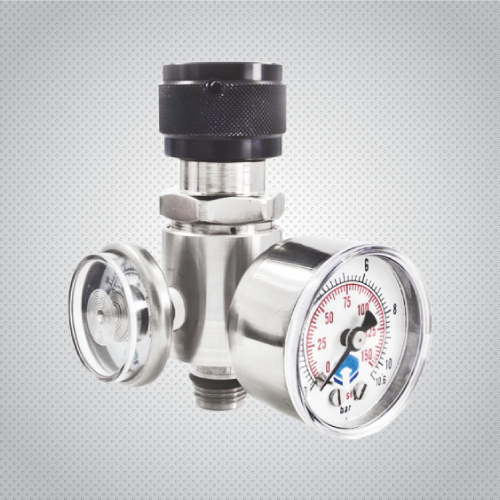

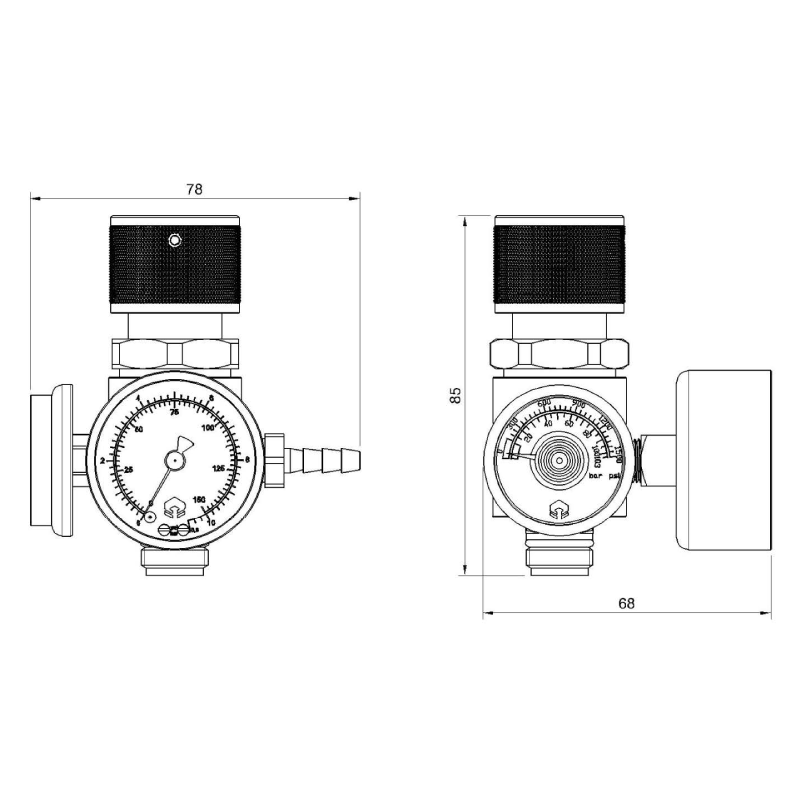

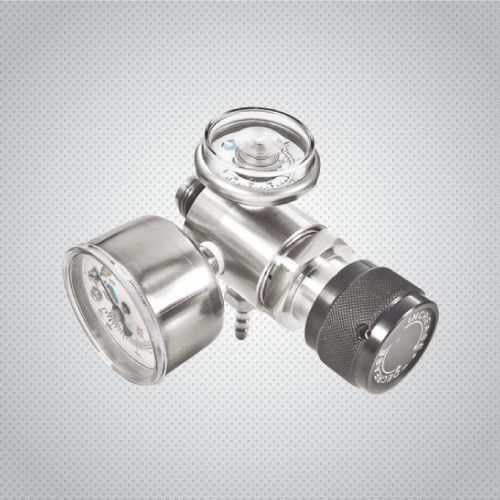

Model 1260-M Pressure Reducing Regulator C10 SS (Single Stage)
The 1260-M regulators are adjustable single stage pressure reducing regulators. These single stage designs provides stable outlet pressure with respect to the reducing inlet pressure.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel 303 |
| Gauge | Stainless Steel 316 |
| Lock Nut | Brass NP |
| Valve Seat | PCTFE |
| Seals | Viton |
| Diaphragm | SS316 |
| Control Knob | Aluminum Anodized |
| Valve Spring | SS 316 |
Outlet pressure options for all the variants
| Outlet Pressure | Outlet Pressure Gauge |
|---|---|
| 0 to 1 bar | 0 to 2 bar |
| 0 to 4 bar | 0 to 10 bar |
| 0 to 7 bar | 0 to 10 bar |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Inlet Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1260-M | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig / 103 bar | 0.380 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1260-M |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Inlet Gauge | Stainless Steel 0 to 1500 psig / 103 bar |
| Weight Kg | 0.380 Kg |

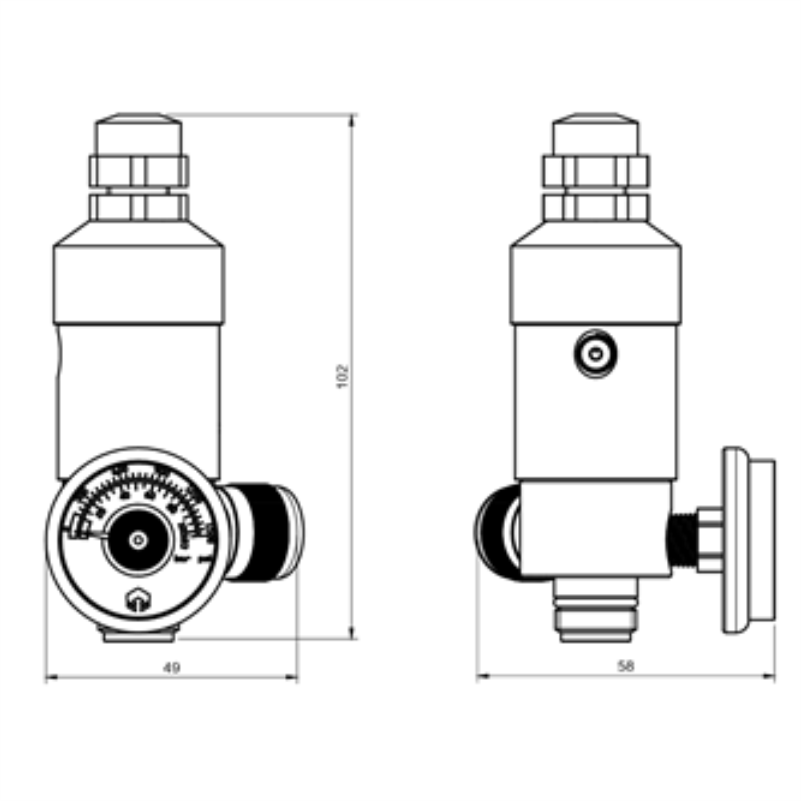

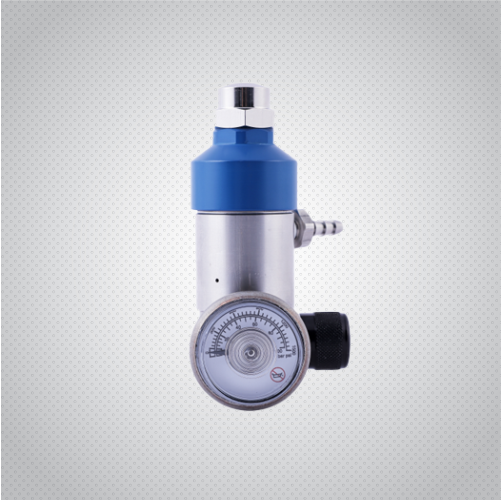

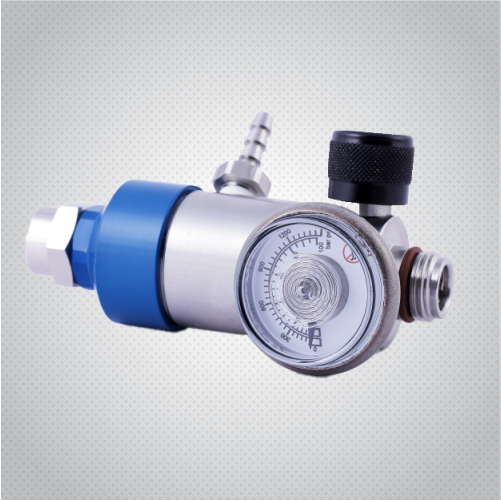

Model 1270 Constant Pressure Regulator Brass N.P.
The Constant Pressure regulator uses a double stage design which provides the user a precise and constant outlet pressure of 0.5 Bar. This regulator is used with calibration gases and for calibration of Gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Stainless Steel |
| Neck | Brass |
| Piston | Brass |
| Seats and Seals | Viton, Teflon |
| Diaphragm | Viton |
| Cap | Aluminum |
| Outlet Pressure | 0.5 Bar (Constant) |

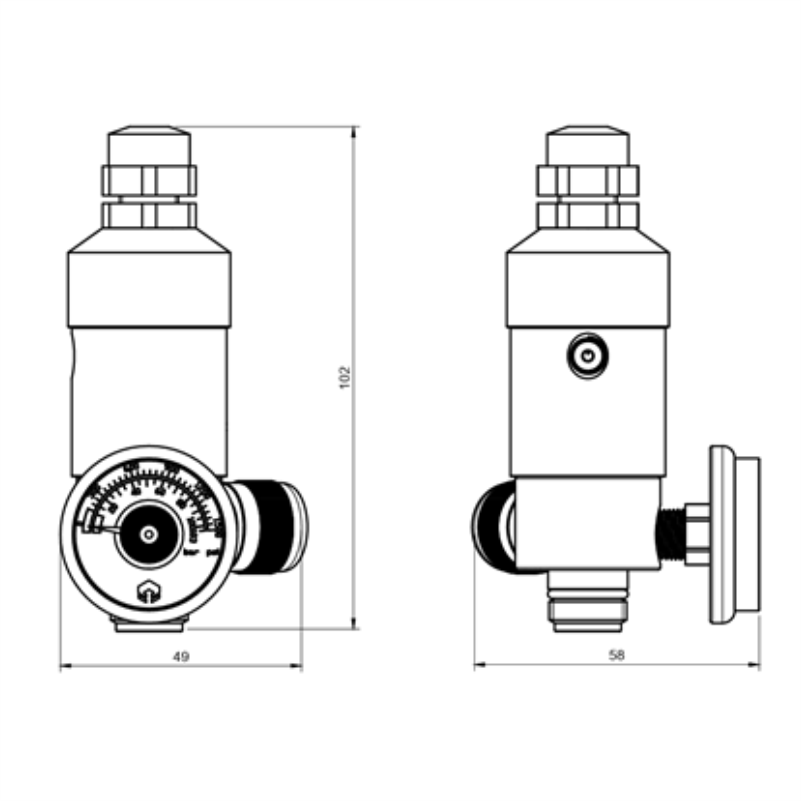

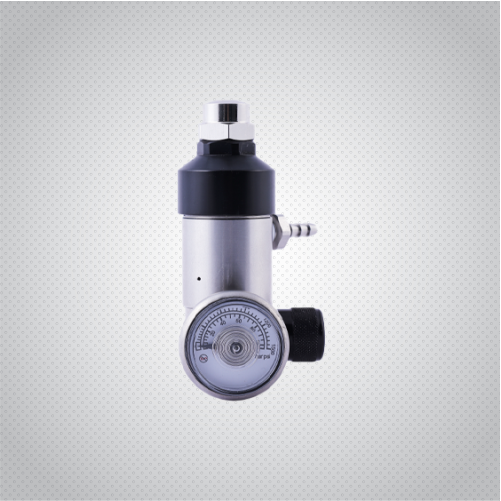

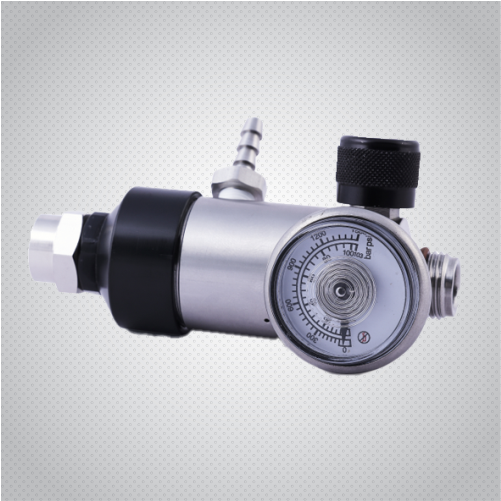

Model 1280 Constant Pressure Regulator Stainless Steel
The Constant Pressure regulator uses a double stage design which provides the user a precise and constant outlet pressure of 0.5 Bar. This regulator is used with calibration gases and for calibration of Gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Gauge | Stainless Steel |
| Neck | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Viton, Teflon |
| Diaphragm | Viton |
| Cap | Aluminum |
| Outlet Pressure | 0.5 Bar (Constant) |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Gauge | Weight Kg |
|---|---|---|---|---|---|---|
| 1280 | 0 to 1200 psig / 83 bar | Stainless Steel - For Reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | Stainless Steel 0 to 1500 psig / 103 bar | 0.400 Kg |
Warranty:All regulators are warranted for 12 months.
